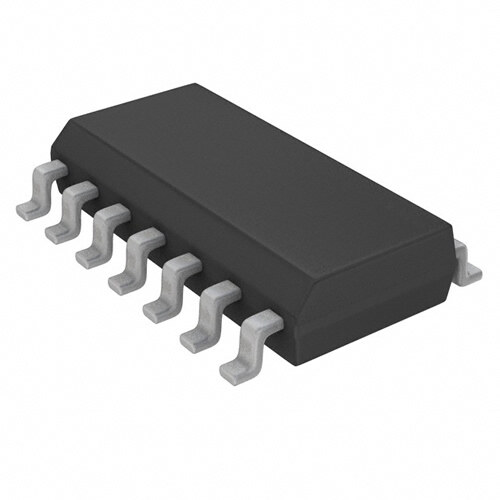

TLC2202CDRG4
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 Nickel/Palladium/Gold (Ni/Pd/Au) Tape & Reel op amp amplifier circuit 8.65mm 0.0001muA 100muV 1900kHz
PDF
/
Buying Options
Total Price: USD $40.56
Unit Price: USD $40.558977
≥1 USD $40.558977
≥10 USD $38.26319
≥100 USD $36.097343
≥500 USD $34.054103
≥1000 USD $32.126504
Inventory: 1112
Minimum: 1
-
+
Technical Details
Physical
Package / Case SOIC
Surface Mount YES
Number of Pins 14
Technical
Packaging Tape & Reel
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 1
Number of Terminations 14
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Subcategory Operational Amplifier
Packing Method TAPE AND REEL
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 2
Supply Voltage 5V
Pin Count 14
Operating Supply Voltage 8V
Temperature Grade COMMERCIAL
Number of Channels 2
Max Supply Voltage 16V
Min Supply Voltage 4.6V
Operating Supply Current 1.8mA
Nominal Supply Current 2.7mA
Current - Output 50mA
Slew Rate 2.7 V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type OPERATIONAL AMPLIFIER
Common Mode Rejection Ratio 80 dB
Current - Input Bias 60pA
Output Current per Channel 50mA
Input Offset Voltage (Vos) 100μV
Bandwidth 1.9MHz
Gain Bandwidth Product 1.9MHz
Neg Supply Voltage-Nom (Vsup) -5V
Unity Gain BW-Nom 1900 kHz
Voltage Gain 109.97dB
Average Bias Current-Max (IIB) 0.0001μA
Low-Offset YES
Frequency Compensation YES
Max Dual Supply Voltage 8V
Low-Bias YES
Micropower YES
Min Dual Supply Voltage 2.3V
Programmable Power NO
Nominal Gain Bandwidth Product 1.9MHz
Max I/O Voltage 1mV
Power NO
