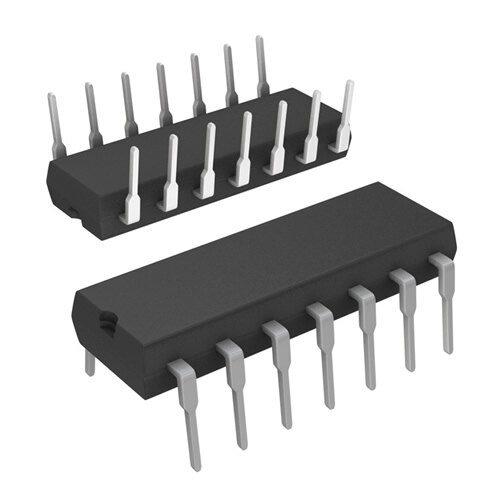

TL054ACNE4
RoHS
/
Package N
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
IC OPAMP JFET 2.7MHZ QUAD 14DIP
PDF
/
Inventory: 9248
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case N
Surface Mount NO
Number of Pins 14
Technical
Packaging Rail/Tube
JESD-609 Code e4
Pbfree Code yes
Number of Terminations 14
ECCN Code EAR99
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Technology BIPOLAR
Terminal Position DUAL
Terminal Form THROUGH-HOLE
Number of Functions 4
Supply Voltage 5V
Pin Count 14
Operating Supply Voltage 15V
Number of Elements 4
Temperature Grade COMMERCIAL
Operating Supply Current 8.4mA
Nominal Supply Current 11.2mA
Slew Rate 17.8 V/μs
Architecture VOLTAGE-FEEDBACK
Common Mode Rejection Ratio 75 dB
Current - Input Bias 200pA
Output Current per Channel 80mA
Input Offset Voltage (Vos) 3.5mV
Bandwidth 2.7MHz
Gain Bandwidth Product 2.7MHz
Neg Supply Voltage-Nom (Vsup) -5V
Unity Gain BW-Nom 2700 kHz
Voltage Gain 97.15dB
Average Bias Current-Max (IIB) 0.0002μA
Low-Offset NO
Frequency Compensation YES
Max Dual Supply Voltage 15V
Low-Bias YES
Min Dual Supply Voltage 5V
Bias Current-Max (IIB) @25C 0.0002μA
Nominal Gain Bandwidth Product 2.7MHz
Max I/O Voltage 1.5mV
Input Offset Current-Max (IIO) 0.001μA
Dimensions
Height Seated (Max) 5.08mm
Length 19.305mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
Alternative Model
