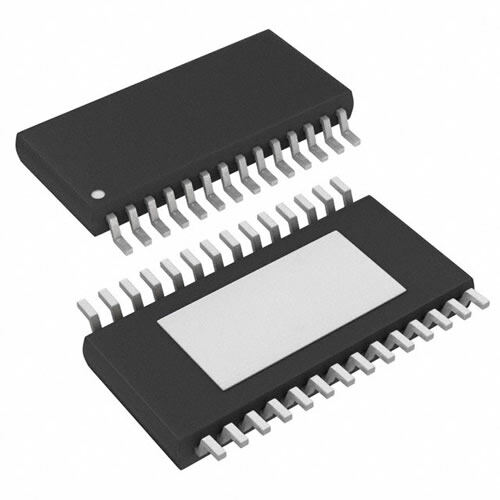

THS7002CPWPG4
RoHS
/
Package HTSSOP EP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
IC OPAMP PROG GAIN 70MHZ 28TSSOP
PDF
/
Buying Options
Total Price: USD $6.62
Unit Price: USD $6.618959
≥1 USD $6.618959
≥10 USD $6.244299
≥100 USD $5.890847
≥500 USD $5.557404
≥1000 USD $5.242834
Inventory: 1172
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 9.7mm
Technical
Input Voltage Noise Density 1.7nV/sqrt Hz
Max I/O Voltage 7mV
Neg Supply Voltage-Max (Vsup) -16.5V
Dual Supply Voltage 15V
Min Dual Supply Voltage 4.5V
-3db Bandwidth 100MHz
Max Dual Supply Voltage 16V
Power Supply Rejection Ratio (PSRR) 85dB
Voltage Gain 89dB
Neg Supply Voltage-Nom (Vsup) -5V
Supply Current-Max (Isup) 9mA
Gain Bandwidth Product 70MHz
Bandwidth 70MHz
Input Offset Voltage (Vos) 5mV
Output Current per Channel 95mA
Current - Input Bias 6μA
Common Mode Rejection Ratio 80 dB
Slew Rate 85 V/μs
Operating Supply Current 7mA
Analog IC - Other Type ANALOG CIRCUIT
Min Supply Voltage 9V
Max Supply Voltage 32V
Number of Circuits 2
Temperature Grade COMMERCIAL
Pin Count 28
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 2
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Subcategory Other Analog ICs
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Resistance 1MOhm
Number of Terminations 28
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
JESD-609 Code e4
Packaging Rail/Tube
Physical
Weight 120.003531mg
Number of Pins 28
Surface Mount YES
Package / Case HTSSOP EP
