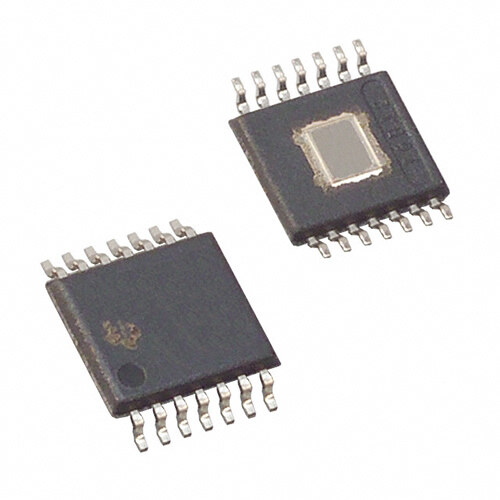

THS6022CPWPG4
RoHS
/
Package HTSSOP EP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 Nickel/Palladium/Gold (Ni/Pd/Au) HTSSOP EP op amp buffer circuit 5mm 12muA 9V 68dB
PDF
/
Inventory: 955
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 4.4mm
Length 5mm
Height 1.15mm
Technical
Supply Voltage1-Nom 15V
Max I/O Voltage 4mV
Negative Supply Voltage-Nom -15V
Interface Standard GENERAL PURPOSE
Dual Supply Voltage 9V
Driver Number of Bits 2
Interface IC Type LINE DRIVER
Input Characteristics DIFFERENTIAL
Settling Time 70 ns
Output Polarity COMPLEMENTARY
Power Supply Rejection Ratio (PSRR) 68dB
Differential Output NO
Gain Bandwidth Product 210MHz
Bandwidth 715MHz
Input Offset Voltage (Vos) 5mV
Output Characteristics DIFFERENTIAL
Current - Input Bias 12μA
Common Mode Rejection Ratio 62 dB
Slew Rate 1900 V/μs
Nominal Supply Current 18mA
Power Dissipation-Max 3.3W
Min Supply Voltage 9V
Max Supply Voltage 32V
Number of Channels 2
Temperature Grade COMMERCIAL
Pin Count 14
Supply Voltage 15V
Number of Functions 2
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 2
JESD-609 Code e4
Physical
Weight 58.003124mg
Number of Pins 14
Surface Mount YES
Package / Case HTSSOP EP
