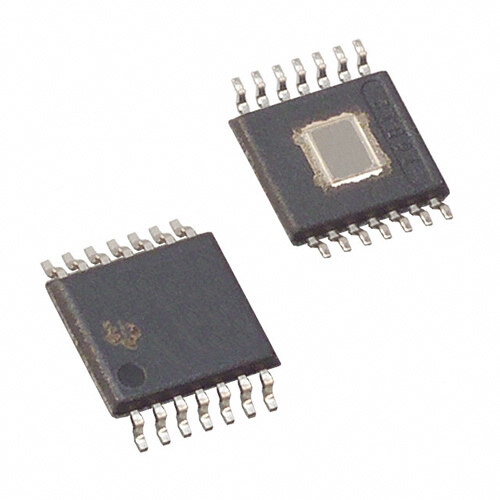

THS3125IPWPG4
RoHS
/
Package HTSSOP EP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
IC OPAMP CFB 160MHZ 14HTSSOP
PDF
/
Buying Options
Total Price: USD $4.51
Unit Price: USD $4.509914
≥1 USD $4.509914
≥10 USD $4.254638
≥100 USD $4.013808
≥500 USD $3.786606
≥1000 USD $3.57227
Inventory: 1136
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 5mm
Technical
Max I/O Voltage 10mV
Consumer IC Type VIDEO AMPLIFIER
Min Dual Supply Voltage 5V
-3db Bandwidth 160MHz
Max Dual Supply Voltage 15V
Settling Time 64 ns
Power Supply Rejection Ratio (PSRR) 53dB
Bandwidth 160000 kHz
Input Offset Voltage (Vos) 4.4mV
Output Current per Channel 440mA
Current - Input Bias 3μA
Common Mode Rejection Ratio 58 dB
Slew Rate 1550 V/μs
Power Dissipation 3.3W
Nominal Supply Current 21mA
Operating Supply Current 8.4mA
Power Dissipation-Max 3.3W
Min Supply Voltage 10V
Max Supply Voltage 30V
Number of Channels 1
Temperature Grade INDUSTRIAL
Number of Elements 2
Pin Count 14
Terminal Pitch 0.65mm
Number of Functions 2
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 2
Pbfree Code yes
JESD-609 Code e4
Packaging Rail/Tube
Physical
Weight 58.003124mg
Number of Pins 14
Surface Mount YES
Package / Case HTSSOP EP
