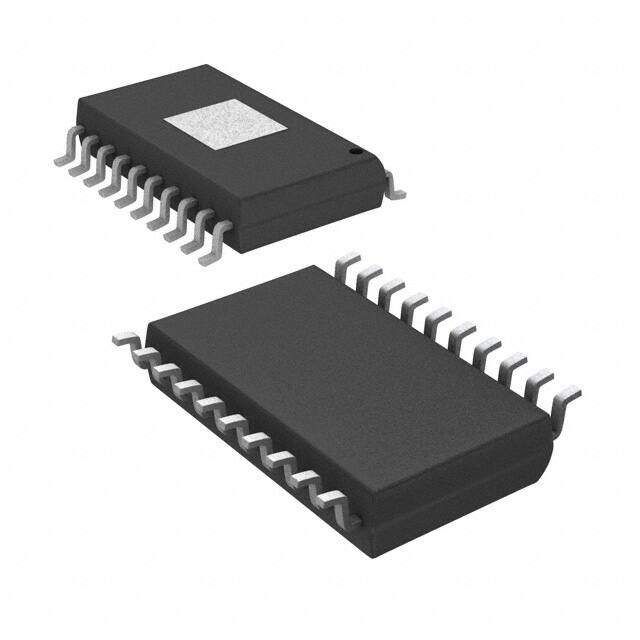

OPA564AIDWD
RoHS
RoHS compliant
RoHS compliantPackage 20-SOIC (0.295, 7.50mm Width) Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Lead Free GULL WING Surface Mount General Purpose General Purpose Amplifier 70dB 40V/mus -40C~85C 17MHz
PDF
/
Buying Options
Total Price: USD $6.42
Unit Price: USD $6.423517
≥1 USD $6.423517
≥10 USD $6.059924
≥100 USD $5.716906
≥500 USD $5.393314
≥1000 USD $5.088028
Inventory: 1292
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 2.35mm
Width 7.52mm
Length 12.82mm
Height 2.65mm
Technical
Wideband NO
Max I/O Voltage 20mV
Nominal Gain Bandwidth Product 17MHz
Programmable Power NO
Micropower NO
Low-Bias YES
Voltage - Input Offset 2mV
Frequency Compensation YES
Low-Offset NO
Power Supply Rejection Ratio (PSRR) 100dB
Voltage Gain 108dB
Unity Gain BW-Nom 17000 kHz
Neg Supply Voltage-Nom (Vsup) -12V
Input Offset Voltage (Vos) 20mV
Output Current per Channel 1.5A
Voltage - Supply, Single/Dual (±) 7V~24V ±3.5V~12V
Current - Input Bias 10pA
Common Mode Rejection Ratio 70 dB
Amplifier Type General Purpose
Architecture VOLTAGE-FEEDBACK
Slew Rate 40V/μs
Output Current 1.5A
Nominal Supply Current 50mA
Operating Supply Current 39mA
Number of Elements 1
Operating Supply Voltage 12V
Pin Count 20
Base Part Number OPA564
Supply Voltage 12V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Operational Amplifier
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Number of Pins 20
Surface Mount YES
Package / Case 20-SOIC (0.295, 7.50mm Width) Exposed Pad
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 6 Weeks
