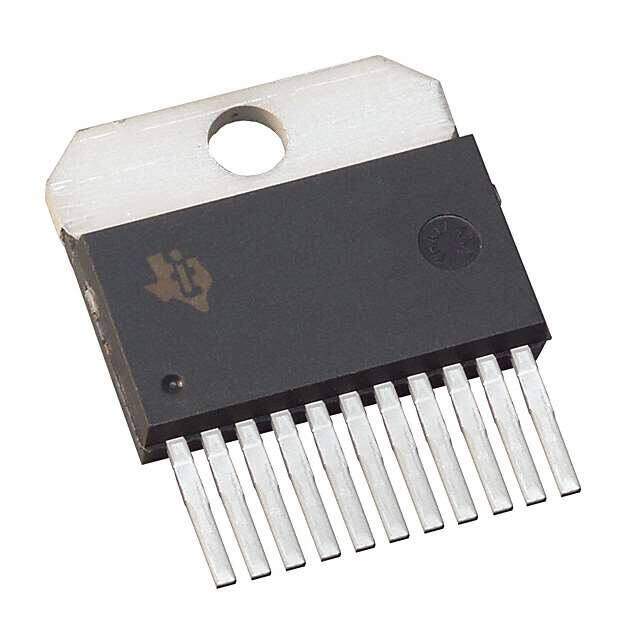

OPA549SG3
RoHS
RoHS compliant
RoHS compliantPackage TO-220-11, Power Package
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Lead Free Through Hole Power SINGLE Power Amplifier 80dB 9V/mus -40C~85C 900kHz
PDF
/
Buying Options
Total Price: USD $22.41
Unit Price: USD $22.4136
≥1 USD $22.4136
Inventory: 68
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mounting Type Through Hole
Package / Case TO-220-11, Power Package
Surface Mount NO
Number of Pins 11
Technical
Operating Temperature -40°C~85°C
Packaging Tube
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 11
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Subcategory Operational Amplifier
Terminal Position SINGLE
Number of Functions 1
Supply Voltage 30V
Base Part Number OPA549
Pin Count 11
Operating Supply Voltage 30V
Power Supplies +-4/+-30/8/60V
Number of Channels 1
Operating Supply Current 26mA
Nominal Supply Current 35mA
Output Current 8A
Slew Rate 9V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 80 dB
Current - Input Bias 100nA
Voltage - Supply, Single/Dual (±) 8V~60V ±4V~30V
Output Current per Channel 10A
Input Offset Voltage (Vos) 5mV
Bandwidth 900 kHz
Neg Supply Voltage-Nom (Vsup) -30V
Unity Gain BW-Nom 900 kHz
Voltage Gain 110dB
Average Bias Current-Max (IIB) 0.5μA
Power Supply Rejection Ratio (PSRR) 92.04dB
Low-Offset NO
Frequency Compensation YES
Voltage - Input Offset 1mV
Low-Bias NO
Micropower NO
Bias Current-Max (IIB) @25C 0.5μA
Programmable Power YES
Nominal Gain Bandwidth Product 900 kHz
Max I/O Voltage 5mV
Input Offset Current-Max (IIO) 0.05μA
Dimensions
Height 4.62mm
Length 20.02mm
Width 10.7mm
Thickness 4.5mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
