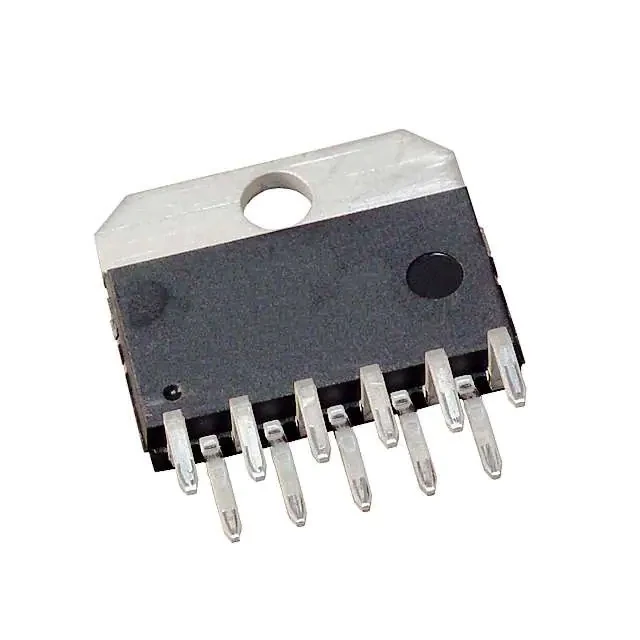

OPA541AP
RoHS
RoHS compliant
RoHS compliantPackage TO-220-11 (Formed Leads)
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant EAR99 OPA541 Tube op amp amplifier circuit 20.02mm 0.00005muA 30V 2000kHz
PDF
/
Buying Options
Total Price: USD $21.34
Unit Price: USD $21.34
≥1 USD $21.34
≥10 USD $19.68208
≥100 USD $18.797856
≥500 USD $16.807472
≥1000 USD $16.033459
≥3000 USD $15.259429
Inventory: 353
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 4.5mm
Width 10.7mm
Length 20.02mm
Height 4.62mm
Technical
Input Offset Current-Max (IIO) 0.00003μA
Power YES
Max I/O Voltage 10mV
Nominal Gain Bandwidth Product 1.6MHz
Dual Supply Voltage 30V
Programmable Power NO
Bias Current-Max (IIB) @25C 0.00005μA
Micropower NO
Low-Bias YES
Supply Voltage Limit-Max 40V
Frequency Compensation YES
Low-Offset NO
Average Bias Current-Max (IIB) 0.00005μA
Voltage Gain 97dB
Unity Gain BW-Nom 2000 kHz
Neg Supply Voltage-Nom (Vsup) -35V
Bandwidth 1.6MHz
Input Offset Voltage (Vos) 2mV
Output Current per Channel 10A
Voltage - Supply, Single/Dual (±) 20V~70V ±10V~35V
Current - Input Bias 4pA
Common Mode Rejection Ratio 95 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 10V/μs
Output Current 10A
Nominal Supply Current 25mA
Operating Supply Current 20mA
Number of Channels 1
Operating Supply Voltage 35V
Pin Count 3
Base Part Number OPA541
Supply Voltage 35V
Number of Functions 1
Terminal Position ZIG-ZAG
Technology BIPOLAR
Subcategory Operational Amplifier
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Number of Pins 11
Surface Mount NO
Package / Case TO-220-11 (Formed Leads)
Mounting Type Through Hole
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 6 Weeks
Alternative Model
