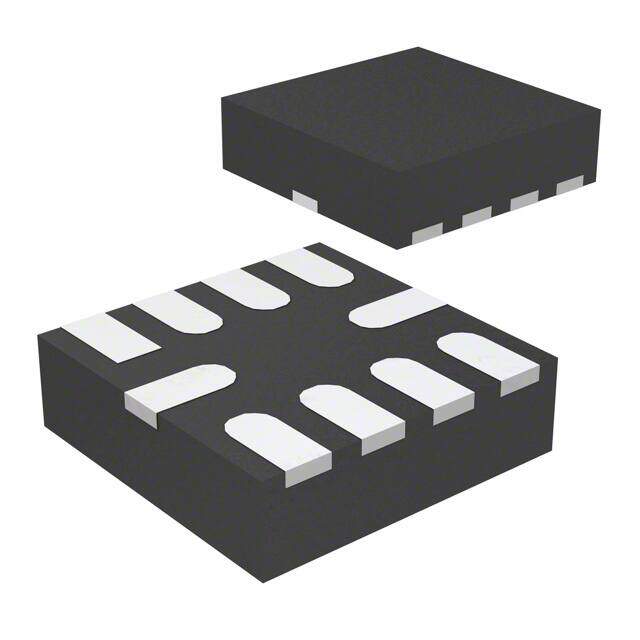

OPA2835IRMCT
RoHS
RoHS compliant
RoHS compliantPackage 10-UFQFN
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant EAR99 OPA2835 Nickel/Palladium/Gold (Ni/Pd/Au) op amp buffer circuit 2mm 0.4muA 100muV 30000kHz
PDF
/
Buying Options
Total Price: USD $3.94
Unit Price: USD $3.9424
≥1 USD $3.9424
Inventory: 95
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 550μm
Width 2mm
Length 2mm
Height 600μm
Technical
Input Offset Current-Max (IIO) 0.1μA
Programmable Power NO
Bias Current-Max (IIB) @25C 0.4μA
Micropower YES
Low-Bias NO
Settling Time 45 ns
Supply Voltage Limit-Max 5.5V
Frequency Compensation YES
Low-Offset NO
Power Supply Rejection Ratio (PSRR) 110dB
Average Bias Current-Max (IIB) 0.4μA
Voltage Gain 120dB
Unity Gain BW-Nom 30000 kHz
Gain Bandwidth Product 31MHz
Bandwidth 56MHz
Input Offset Voltage (Vos) 100μV
Output Current per Channel 40mA
Voltage - Supply, Single/Dual (±) 2.5V~5.5V ±1.25V~2.75V
Current - Input Bias 200nA
Common Mode Rejection Ratio 91 dB
Amplifier Type Voltage Feedback
Slew Rate 160V/μs
Output Current 40mA
Nominal Supply Current 250μA
Operating Supply Current 250μA
Number of Channels 2
Output Type Rail-to-Rail
Pin Count 10
Base Part Number OPA2835
Terminal Pitch 0.5mm
Supply Voltage 2.7V
Number of Functions 2
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Technology BIPOLAR
Packing Method TR
Subcategory Operational Amplifier
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 10
Package / Case 10-UFQFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
