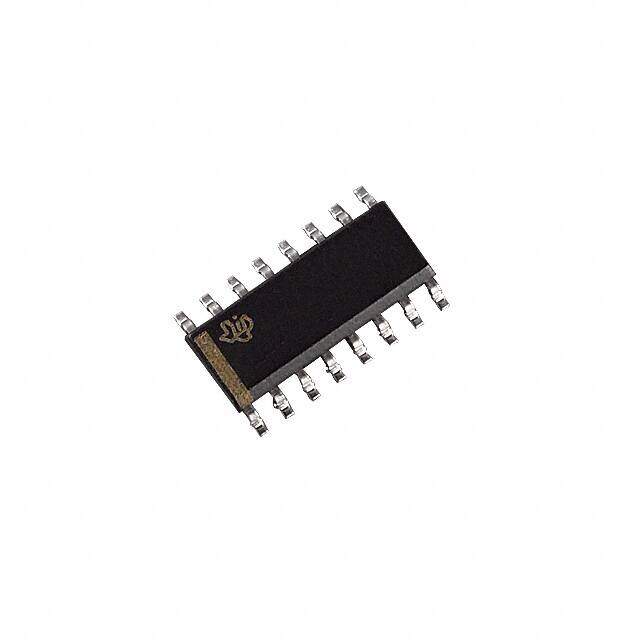

OPA2677T
RoHS
RoHS compliant
RoHS compliantPackage 16-SOIC (0.154, 3.90mm Width)
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant R-PDSO-G16 OPA2677 TIN LEAD op amp buffer circuit 9.9mm 19.5mA 1mV 220000kHz
PDF
/
Buying Options
Total Price: USD $1.79
Unit Price: USD $1.7864
≥1 USD $1.7864
Inventory: 40063
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154, 3.90mm Width)
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series SpeedPlus?
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 16
ECCN Code EAR99
Terminal Finish TIN LEAD
Subcategory Operational Amplifier
Packing Method RAIL
Technology BIPOLAR
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 2
Supply Voltage 6V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number OPA2677
Pin Count 16
JESD-30 Code R-PDSO-G16
Qualification Status Not Qualified
Power Supplies 5/+-6V
Number of Circuits 2
Operating Supply Current 18mA
Supply Current-Max 19.5mA
Slew Rate 2000V/μs
Amplifier Type Current Feedback
Common Mode Rejection Ratio 55 dB
Current - Input Bias 10μA
Voltage - Supply, Single/Dual (±) 5V~12V ±2.5V~6V
Output Current per Channel 500mA
Input Offset Voltage (Vos) 1mV
Gain Bandwidth Product 2GHz
Neg Supply Voltage-Nom (Vsup) -6V
Unity Gain BW-Nom 220000 kHz
Average Bias Current-Max (IIB) 55μA
Low-Offset NO
Frequency Compensation YES
Supply Voltage Limit-Max 6.5V
Low-Bias NO
Micropower NO
-3db Bandwidth 250MHz
Bias Current-Max (IIB) @25C 35μA
Programmable Power NO
Neg Supply Voltage-Max (Vsup) -6.5V
Wideband YES
Power YES
Dimensions
Height Seated (Max) 1.75mm
Length 9.9mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
