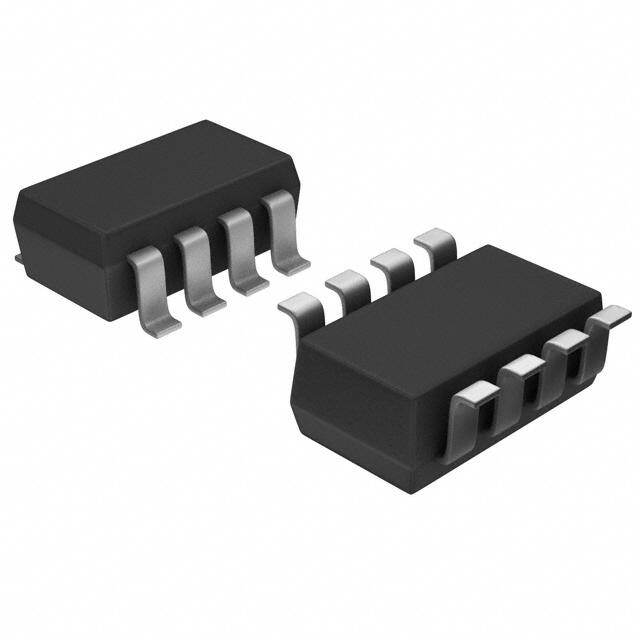

OPA2379AIDCNRG4
RoHS
/
Package SOT-23
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 Nickel/Palladium/Gold (Ni/Pd/Au) Tape and Reel op amp buffer circuit 1.45mm 0.00005muA 1.5mV 90kHz
PDF
/
Buying Options
Total Price: USD $16.59
Unit Price: USD $16.58985
≥1 USD $16.58985
≥10 USD $13.61255
≥100 USD $13.18695
≥500 USD $12.76135
≥1000 USD $12.3367
Inventory: 4990
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 1.45mm
Technical
Wideband NO
Max I/O Voltage 1.5mV
Nominal Gain Bandwidth Product 90 kHz
Programmable Power NO
Micropower YES
Low-Bias YES
Frequency Compensation YES
Low-Offset NO
Power Supply Rejection Ratio (PSRR) 113.98dB
Average Bias Current-Max (IIB) 0.00005μA
Voltage Gain 120dB
Unity Gain BW-Nom 90 kHz
Gain Bandwidth Product 90 kHz
Input Offset Voltage (Vos) 1.5mV
Output Current per Channel 5mA
Current - Input Bias 50pA
Common Mode Rejection Ratio 90 dB
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Slew Rate 0.03 V/μs
Current - Output 5mA
Nominal Supply Current 5.5μA
Operating Supply Current 2.9μA
Min Supply Voltage 1.8V
Max Supply Voltage 5.5V
Temperature Grade AUTOMOTIVE
Number of Elements 2
Pin Count 8
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 2
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Operational Amplifier
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 2
JESD-609 Code e4
Packaging Tape and Reel
Physical
Number of Pins 8
Surface Mount YES
Package / Case SOT-23
