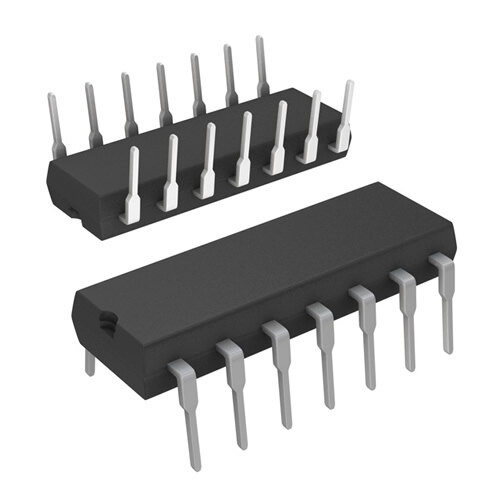

LT1014DINE4
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 Nickel/Palladium/Gold (Ni/Pd/Au) Rail/Tube op amp buffer circuit 19.3mm 0.03muA 15V 700kHz
PDF
/
Inventory: 4569
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Mount Through Hole
Package / Case PDIP
Number of Pins 14
Technical
Packaging Rail/Tube
JESD-609 Code e4
Pbfree Code yes
Number of Terminations 16
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Subcategory Operational Amplifier
Technology BIPOLAR
Terminal Position DUAL
Number of Functions 4
Supply Voltage 15V
Pin Count 14
Operating Supply Voltage 22V
Number of Elements 4
Temperature Grade INDUSTRIAL
Max Supply Voltage 44V
Min Supply Voltage 5V
Operating Supply Current 350μA
Nominal Supply Current 2.2mA
Power Dissipation 1.15W
Slew Rate 0.4 V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type OPERATIONAL AMPLIFIER
Common Mode Rejection Ratio 97 dB
Current - Input Bias 12nA
Input Offset Voltage (Vos) 200μV
Bandwidth 1MHz
Gain Bandwidth Product 1MHz
Neg Supply Voltage-Nom (Vsup) -15V
Unity Gain BW-Nom 700 kHz
Voltage Gain 120dB
Average Bias Current-Max (IIB) 0.03μA
Low-Offset NO
Frequency Compensation YES
Max Dual Supply Voltage 22V
Low-Bias NO
Micropower YES
Min Dual Supply Voltage 2.5V
Bias Current-Max (IIB) @25C 0.05μA
Programmable Power NO
Dual Supply Voltage 15V
Input Offset Current-Max (IIO) 0.002μA
Dimensions
Height 5.08mm
Length 19.3mm
Width 6.35mm
Thickness 3.9mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Alternative Model
