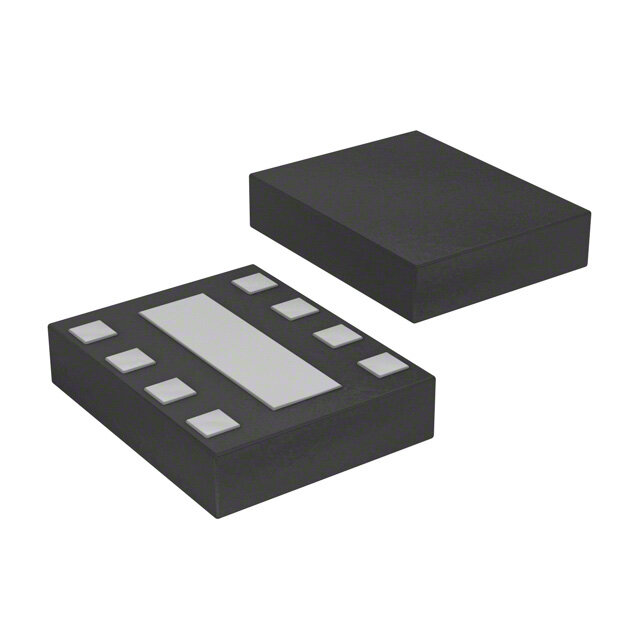

LPV542DNXT
RoHS
RoHS compliant
RoHS compliantPackage 8-XFDFN Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant LPV542 Tape & Reel (TR) ACTIVE (Last Updated: 2days ago) op amp buffer circuit 3mm 0.0017mA 2mV 8kHz
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.2848
≥1 USD $1.2848
≥10 USD $1.1572
≥100 USD $1.091904
≥500 USD $0.930248
Inventory: 474
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-XFDFN Exposed Pad
Number of Pins 8
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Subcategory Operational Amplifier
Packing Method TR
Technology CMOS
Terminal Position DUAL
Terminal Form NO LEAD
Number of Functions 2
Supply Voltage 1.8V
Terminal Pitch 0.5mm
Base Part Number LPV542
Output Type Rail-to-Rail
Number of Channels 2
Operating Supply Current 480nA
Supply Current-Max 0.0017mA
Slew Rate 0.0037V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type General Purpose
Common Mode Rejection Ratio 101 dB
Current - Input Bias 1pA
Voltage - Supply, Single/Dual (±) 1.6V~5.5V
Output Current per Channel 36mA
Input Offset Voltage (Vos) 2mV
Bandwidth 8 kHz
Unity Gain BW-Nom 8 kHz
Average Bias Current-Max (IIB) 0.000001μA
Low-Offset NO
Frequency Compensation YES
Supply Voltage Limit-Max 6V
Voltage - Input Offset 2mV
Low-Bias YES
Micropower YES
Programmable Power NO
Power NO
Common-mode Reject Ratio-Min 73 dB
Dimensions
Height 500μm
Length 3mm
Width 3mm
Thickness 450μm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
