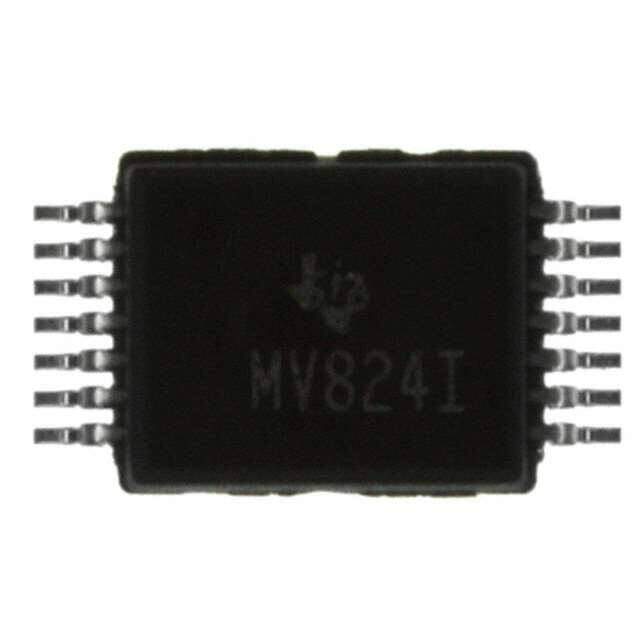

LMV824IDGVR
RoHS
RoHS compliant
RoHS compliantPackage 14-TFSOP (0.173, 4.40mm Width)
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant EAR99 LMV824 Nickel/Palladium/Gold (Ni/Pd/Au) op amp buffer circuit 1.2mm 0.1muA 1mV 5000kHz
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.53675
≥1 USD $0.53675
≥10 USD $0.4408
≥100 USD $0.42655
≥500 USD $0.41325
≥1000 USD $0.399
Inventory: 14201
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 14-TFSOP (0.173, 4.40mm Width)
Number of Pins 14
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 14
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory Operational Amplifier
Packing Method TAPE AND REEL
Technology BIPOLAR
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 4
Supply Voltage 2.7V
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number LMV824
Pin Count 14
Qualification Status Not Qualified
Output Type Rail-to-Rail
Power Supplies 2.5/5V
Number of Circuits 4
Operating Supply Current 1mA
Nominal Supply Current 1.3mA
Output Current 45mA
Slew Rate 1.9V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type General Purpose
Common Mode Rejection Ratio 72 dB
Current - Input Bias 40nA
Voltage - Supply, Single/Dual (±) 2.5V~5.5V ±1.25V~2.75V
Output Current per Channel 45mA
Input Offset Voltage (Vos) 1mV
Bandwidth 5.5MHz
Unity Gain BW-Nom 5000 kHz
Voltage Gain 105dB
Low-Offset NO
Frequency Compensation YES
Supply Voltage Limit-Max 5.5V
Low-Bias NO
Micropower YES
Bias Current-Max (IIB) @25C 0.1μA
Programmable Power NO
Power NO
Dimensions
Height Seated (Max) 1.2mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
