LMH6702MFX
RoHS
/

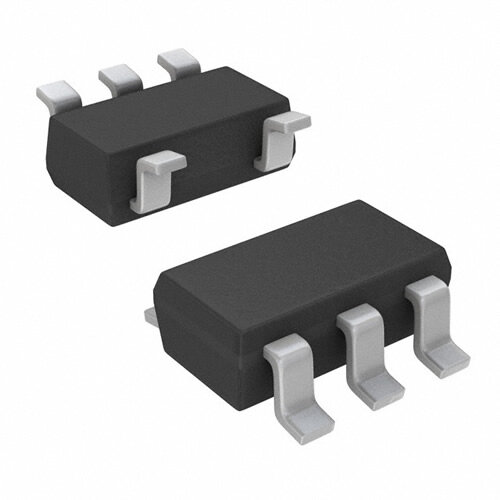

Package SOT-23
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
GULL WING OPERATIONAL AMPLIFIER BIPOLAR INDUSTRIAL op amp amplifier circuit 45dB 3100V/mus 85C 47dB
PDF
/
Buying Options
Total Price: USD $3.22
Unit Price: USD $3.2224
≥1 USD $3.2224
≥10 USD $2.64385
≥100 USD $2.5612
≥500 USD $2.47855
≥1000 USD $2.3959
Inventory: 1437
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 2.92mm
Technical
Min Dual Supply Voltage 5V
Max Dual Supply Voltage 6V
Power Supply Rejection Ratio (PSRR) 47dB
Input Offset Voltage (Vos) 4.5mV
Current - Input Bias 15μA
Common Mode Rejection Ratio 45 dB
Amplifier Type OPERATIONAL AMPLIFIER
Slew Rate 3100 V/μs
Current - Output 80mA
Nominal Supply Current 12.5mA
Number of Channels 1
Temperature Grade INDUSTRIAL
Operating Supply Voltage 6V
Pin Count 5
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Subcategory Operational Amplifier
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1
Pbfree Code no
JESD-609 Code e0
Packaging Tape and Reel
Physical
Number of Pins 5
Package / Case SOT-23
Mount Surface Mount
