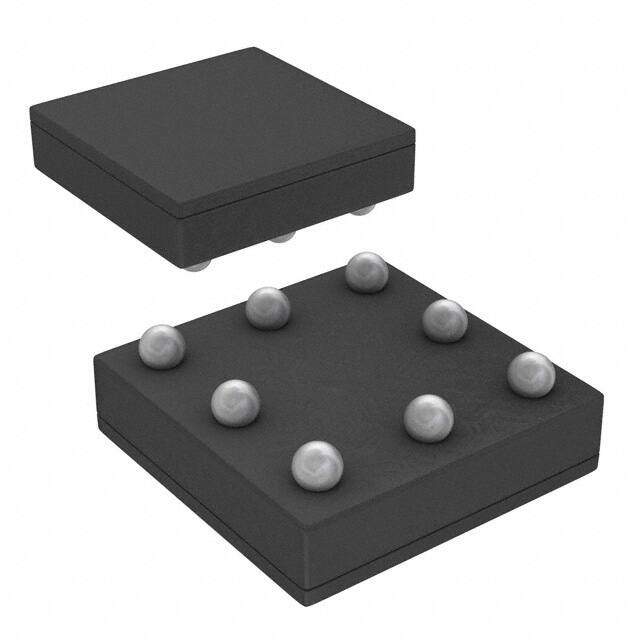

LMC8101TP/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 8-UFBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant EAR99 LMC8101 Tin/Silver/Copper (Sn/Ag/Cu) op amp amplifier circuit 0m 0.000064muA 3V 1000kHz
PDF
/
Buying Options
Total Price: USD $1.69
Unit Price: USD $1.6896
≥1 USD $1.6896
≥10 USD $1.51448
≥100 USD $1.428768
≥500 USD $1.217304
Inventory: 708
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-UFBGA
Number of Pins 8
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Operational Amplifier
Packing Method TR
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.5mm
Base Part Number LMC8101
Pin Count 8
Output Type Rail-to-Rail
Operating Supply Voltage 5V
Number of Elements 1
Operating Supply Current 1.1mA
Nominal Supply Current 700μA
Output Current 20mA
Slew Rate 1.2V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type General Purpose
Common Mode Rejection Ratio 70 dB
Current - Input Bias 1pA
Voltage - Supply, Single/Dual (±) 2.7V~10V ±1.35V~5V
Output Current per Channel 90mA
Input Offset Voltage (Vos) 700μV
Gain Bandwidth Product 1.3MHz
Neg Supply Voltage-Nom (Vsup) -5V
Unity Gain BW-Nom 1000 kHz
Voltage Gain 102.8dB
Average Bias Current-Max (IIB) 0.000064μA
Power Supply Rejection Ratio (PSRR) 76dB
Low-Offset NO
Frequency Compensation YES
Supply Voltage Limit-Max 6V
Low-Bias YES
Micropower NO
Bias Current-Max (IIB) @25C 0.000064μA
Programmable Power NO
Dual Supply Voltage 3V
Wideband NO
Input Offset Current-Max (IIO) 0.000032μA
Dimensions
Height 575μm
Length 0m
Width 0m
Thickness 370μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
