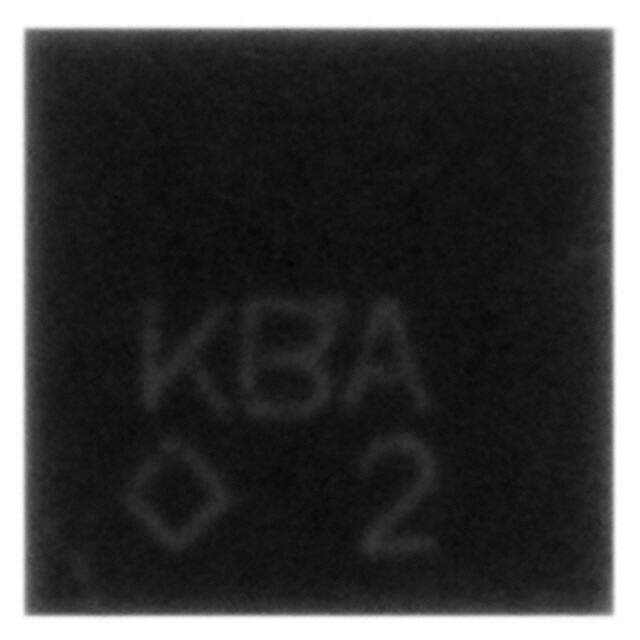

LMC8101BP
RoHS
/
Package 8-VFBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Contains Lead BALL Rail-to-Rail Surface Mount General Purpose Amplifier 70dB 1.2V/mus -40C~85C 1.3MHz
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
Inventory: 1149
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Technical
Neg Supply Voltage-Max (Vsup) -6V
Dual Supply Voltage 3V
Supply Voltage Limit-Max 6V
Power Supply Rejection Ratio (PSRR) 76dB
Average Bias Current-Max (IIB) 0.000064μA
Voltage Gain 102.8dB
Unity Gain BW-Nom 840 kHz
Neg Supply Voltage-Nom (Vsup) -5V
Gain Bandwidth Product 1.3MHz
Input Offset Voltage (Vos) 700μV
Output Current per Channel 90mA
Voltage - Supply, Single/Dual (±) 2.7V~10V ±1.35V~5V
Current - Input Bias 1pA
Common Mode Rejection Ratio 70 dB
Amplifier Type General Purpose
Slew Rate 1.2V/μs
Operating Supply Current 1.1mA
Number of Circuits 1
Number of Elements 1
Output Type Rail-to-Rail
Pin Count 8
Base Part Number LMC8101
Terminal Pitch 0.5mm
Supply Voltage 5V
Number of Functions 1
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Operational Amplifier
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Number of Pins 8
Package / Case 8-VFBGA
Mounting Type Surface Mount
Mount Surface Mount
