LMC6035ITL/NOPB
RoHS
RoHS compliant

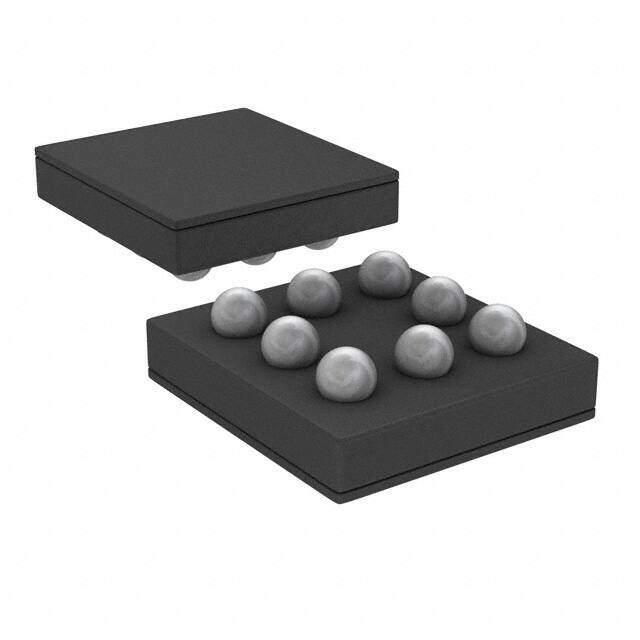

RoHS compliantPackage 8-WFBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant EAR99 LMC6035 Tin/Silver/Copper (Sn/Ag/Cu) op amp buffer circuit 2mm 0.02pA 500muV 1400kHz
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.3848
≥1 USD $2.3848
≥10 USD $2.14544
≥100 USD $2.024352
≥500 USD $1.724624
Inventory: 1103
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Plating Copper, Silver, Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-WFBGA
Number of Pins 8
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Operational Amplifier
Packing Method TR
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 2
Supply Voltage 2.7V
Terminal Pitch 0.5mm
Base Part Number LMC6035
Pin Count 8
Output Type Rail-to-Rail
Number of Elements 2
Operating Supply Current 650μA
Nominal Supply Current 650μA
Output Current 4mA
Slew Rate 1.5V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type General Purpose
Common Mode Rejection Ratio 63 dB
Current - Input Bias 0.02pA
Voltage - Supply, Single/Dual (±) 2V~15.5V ±1V~7.75V
Output Current per Channel 8mA
Input Offset Voltage (Vos) 500μV
Gain Bandwidth Product 1.4MHz
Unity Gain BW-Nom 1400 kHz
Voltage Gain 126.02dB
Power Supply Rejection Ratio (PSRR) 63dB
Low-Offset NO
Frequency Compensation YES
Supply Voltage Limit-Max 16V
Low-Bias YES
Micropower YES
Max Frequency 10kHz
Programmable Power NO
Wideband NO
Input Offset Current-Max (IIO) 0.000045μA
Dimensions
Height 675μm
Length 2mm
Width 1.3mm
Thickness 675μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
