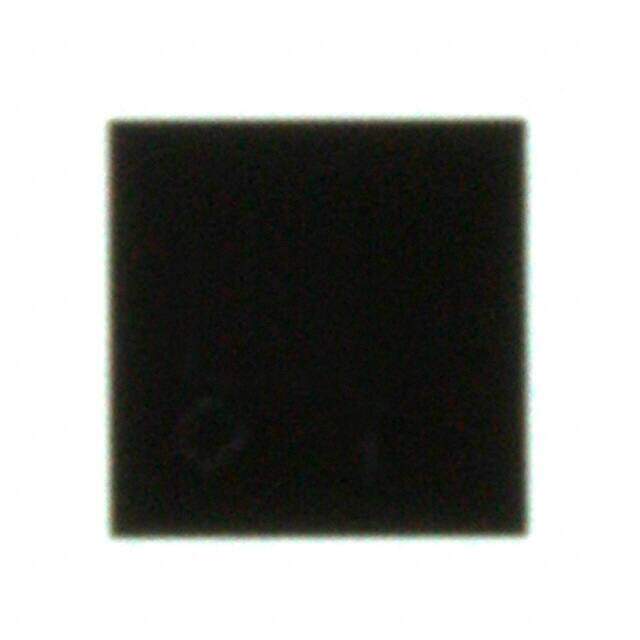

LMC6035IBP
RoHS
/
Package 8-VFBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant EAR99 LMC6035 Cut Tape (CT) op amp amplifier circuit 0.5mm 650muA 2.7V 1400kHz
PDF
/
Buying Options
Total Price: USD $22.26
Unit Price: USD $22.2604
≥1 USD $22.2604
≥10 USD $18.26565
≥100 USD $17.6947
≥500 USD $17.12375
≥1000 USD $16.5528
Inventory: 1100
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Technical
Supply Voltage Limit-Max 16V
Power Supply Rejection Ratio (PSRR) 63dB
Voltage Gain 126.02dB
Unity Gain BW-Nom 1400 kHz
Gain Bandwidth Product 1.4MHz
Input Offset Voltage (Vos) 500μV
Output Current per Channel 8mA
Voltage - Supply, Single/Dual (±) 2V~15.5V ±1V~7.75V
Current - Input Bias 0.02pA
Common Mode Rejection Ratio 63 dB
Amplifier Type General Purpose
Slew Rate 1.5V/μs
Operating Supply Current 650μA
Number of Circuits 2
Number of Elements 2
Output Type Rail-to-Rail
Pin Count 8
Base Part Number LMC6035
Terminal Pitch 0.5mm
Supply Voltage 2.7V
Number of Functions 2
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Operational Amplifier
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Number of Pins 8
Package / Case 8-VFBGA
Mounting Type Surface Mount
Mount Surface Mount
