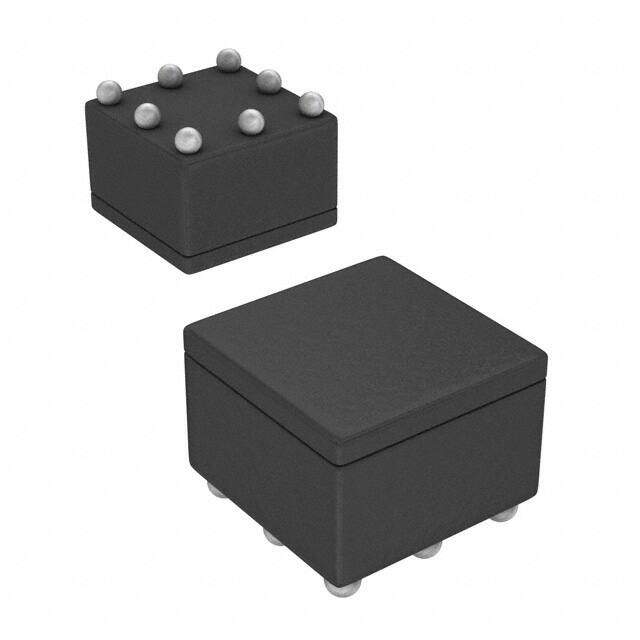

LM358BPX
RoHS
RoHS compliant
RoHS compliantPackage 8-VFBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Lead Free BALL Surface Mount General Purpose op amp amplifier circuit 435mW 65dB 0.1V/mus 0C~70C
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.3002
≥1 USD $0.3002
≥10 USD $0.247
≥100 USD $0.23845
≥500 USD $0.23085
≥1000 USD $0.22325
Inventory: 1251
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-VFBGA
Number of Pins 8
Technical
Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 8
ECCN Code EAR99
Subcategory Operational Amplifier
Terminal Position BOTTOM
Terminal Form BALL
Number of Functions 2
Supply Voltage 5V
Terminal Pitch 0.5mm
Base Part Number LM358
Pin Count 8
Number of Elements 2
Number of Circuits 2
Operating Supply Current 1mA
Power Dissipation 435mW
Slew Rate 0.1V/μs
Amplifier Type General Purpose
Common Mode Rejection Ratio 65 dB
Current - Input Bias 45nA
Voltage - Supply, Single/Dual (±) 3V~32V ±1.5V~16V
Output Current per Channel 40mA
Input Offset Voltage (Vos) 2mV
Gain Bandwidth Product 1MHz
Unity Gain BW-Nom 1000 kHz
Voltage Gain 100dB
Average Bias Current-Max (IIB) 0.5μA
Power Supply Rejection Ratio (PSRR) 65dB
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
