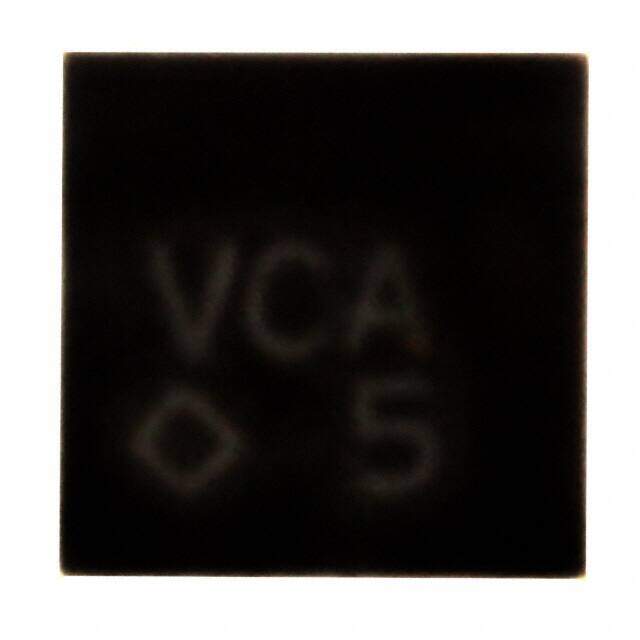

LM358BP
RoHS
/
Package 8-VFBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant EAR99 LM358 Cut Tape (CT) op amp amplifier circuit 1.28mm 0.5muA 9V 1000kHz
PDF
/
Buying Options
Total Price: USD $6.06
Unit Price: USD $6.06195
≥1 USD $6.06195
≥10 USD $4.9742
≥100 USD $4.8184
≥500 USD $4.6626
≥1000 USD $4.50775
Inventory: 1266
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-VFBGA
Number of Pins 8
Technical
Operating Temperature 0°C~70°C
Packaging Cut Tape (CT)
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Subcategory Operational Amplifier
Terminal Position BOTTOM
Terminal Form BALL
Number of Functions 2
Supply Voltage 5V
Terminal Pitch 0.5mm
Base Part Number LM358
Pin Count 8
Operating Supply Voltage 28V
Number of Circuits 2
Operating Supply Current 1mA
Slew Rate 0.1V/μs
Amplifier Type General Purpose
Common Mode Rejection Ratio 85 dB
Current - Input Bias 45nA
Voltage - Supply, Single/Dual (±) 3V~32V ±1.5V~16V
Output Current per Channel 40mA
Input Offset Voltage (Vos) 2mV
Gain Bandwidth Product 1MHz
Unity Gain BW-Nom 1000 kHz
Voltage Gain 100dB
Average Bias Current-Max (IIB) 0.5μA
Dual Supply Voltage 9V
Dimensions
Height 730μm
Length 1.28mm
Width 1.28mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
