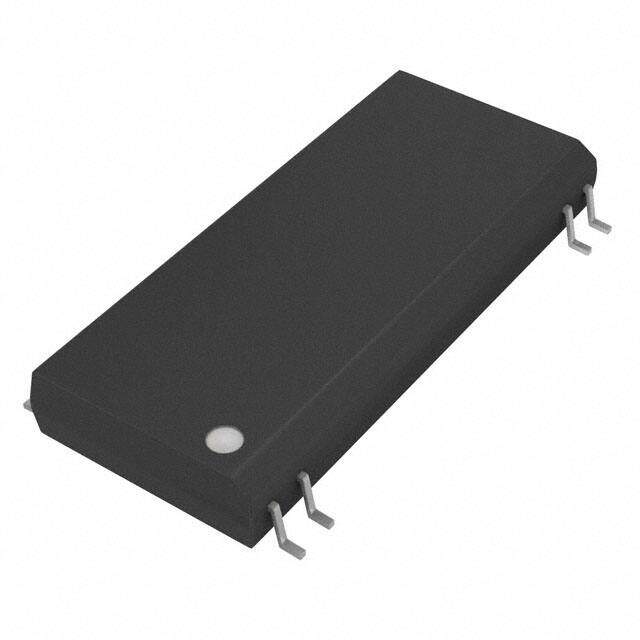

ISO122U
RoHS
RoHS compliant
RoHS compliantPackage 28-SOIC (0.295, 7.50mm Width), 8 Leads
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant EAR99 ISO122 Nickel/Palladium/Gold (Ni/Pd/Au) op amp amplifier circuit 17.9mm 5mA 9V 0dB
PDF
/
Buying Options
Total Price: USD $33.65
Unit Price: USD $33.6512
≥1 USD $33.6512
≥10 USD $31.03364
≥100 USD $29.63906
≥500 USD $26.50076
≥1000 USD $25.280306
Inventory: 182
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 2.3mm
Width 7.5mm
Length 17.9mm
Height 2.65mm
Technical
Non-linearity-Max 0.02%
Isolation Voltage 1.5kV
Dual Supply Voltage 9V
-3db Bandwidth 50MHz
Voltage Gain 0dB
Neg Supply Voltage-Nom (Vsup) -15V
Bandwidth 50 kHz
Input Offset Voltage (Vos) 20mV
Output Current per Channel 15mA
Voltage - Supply, Single/Dual (±) ±4.5V~18V
Common Mode Rejection Ratio 140 dB
Amplifier Type Isolation
Slew Rate 2V/μs
Nominal Supply Current 5mA
Operating Supply Current 5mA
Number of Channels 1
Pin Count 28
Base Part Number ISO122
Supply Voltage 15V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Resistance 200kOhm
ECCN Code EAR99
Number of Terminations 28
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Weight 540.001716mg
Number of Pins 8
Surface Mount YES
Package / Case 28-SOIC (0.295, 7.50mm Width), 8 Leads
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 6 Weeks
