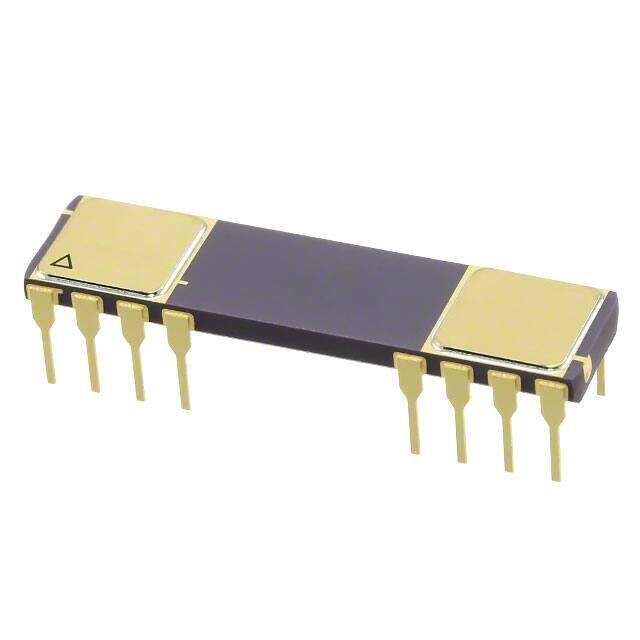

ISO113B
RoHS
RoHS compliant
RoHS compliantPackage 24-CDIP (0.600, 15.24mm), 16 Leads
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Contains Lead Not Qualified Through Hole Isolation Isolation Amplifier 1.5V/mus -25C~85C 20kHz 20mV
PDF
/
Buying Options
Total Price: USD $307.76
Unit Price: USD $307.761638
≥1 USD $307.761638
≥10 USD $297.641815
≥25 USD $295.572808
≥50 USD $293.518177
≥100 USD $287.481076
≥500 USD $266.927647
Inventory: 1287
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 9.52mm
Technical
-3db Bandwidth 20kHz
Neg Supply Voltage-Nom (Vsup) -15V
Input Offset Voltage (Vos) 20mV
Output Current per Channel 15mA
Voltage - Supply, Single/Dual (±) ±10V~18V
Amplifier Type Isolation
Slew Rate 1.5V/μs
Operating Supply Current 90mA
Number of Circuits 1
Qualification Status Not Qualified
Pin Count 24
Base Part Number ISO113
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Supply Voltage 15V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Number of Pins 24
Package / Case 24-CDIP (0.600, 15.24mm), 16 Leads
Mounting Type Through Hole
Mount Through Hole
