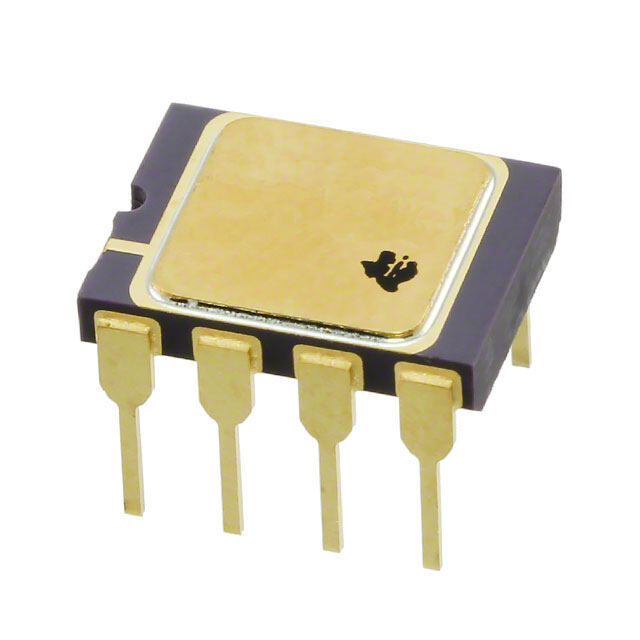

INA333SJD
RoHS
/
Package 8-CDIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant EAR99 INA333 Tube op amp buffer circuit 10.29mm 70pA 10muV 150kHz
PDF
/
Buying Options
Total Price: USD $102.83
Unit Price: USD $102.834205
≥1 USD $102.834205
≥30 USD $98.577784
Inventory: 1116
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-CDIP (0.300, 7.62mm)
Number of Pins 8
Technical
Operating Temperature -55°C~210°C
Packaging Tube
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Resistance 100GOhm
Subcategory Operational Amplifier
Terminal Position DUAL
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 2.54mm
Base Part Number INA333
Pin Count 8
Output Type Rail-to-Rail
Number of Elements 3
Power Supplies 2/5V
Number of Circuits 1
Operating Supply Current 50μA
Quiescent Current 198μA
Slew Rate 0.16V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Instrumentation
Common Mode Rejection Ratio 80 dB
Current - Input Bias 70pA
Voltage - Supply, Single/Dual (±) 1.8V~5.5V ±0.9V~2.75V
Output Current per Channel 40mA
Input Offset Voltage (Vos) 10μV
Unity Gain BW-Nom 150 kHz
Voltage Gain 60dB
Power Supply Rejection Ratio (PSRR) 112.04dB
Low-Offset YES
Frequency Compensation YES
Supply Voltage Limit-Max 7V
Micropower YES
-3db Bandwidth 150kHz
Programmable Power NO
Wideband NO
Dimensions
Height 4.45mm
Length 10.29mm
Width 7.37mm
Thickness 3.5mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
