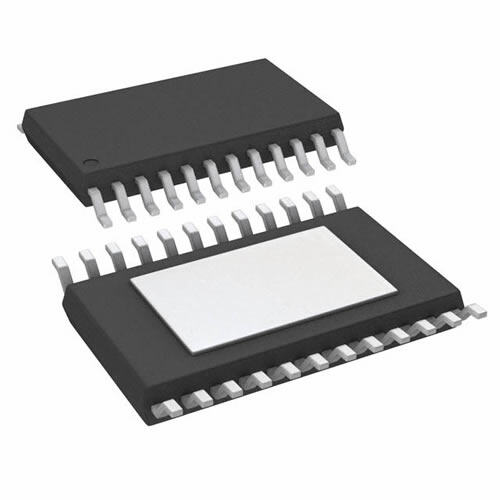

BUF12800AIPWPRG4
RoHS
/
Package HTSSOP EP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant 8542.39.00.01 Nickel/Palladium/Gold (Ni/Pd/Au) Tape & Reel (TR) op amp amplifier circuit 7.8mm 10mA 2.3V 85C
PDF
/
Buying Options
Total Price: USD $3.98
Unit Price: USD $3.9805
≥1 USD $3.9805
≥10 USD $3.2661
≥100 USD $3.16445
≥500 USD $3.06185
≥1000 USD $2.9602
Inventory: 992
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 4.4mm
Length 7.8mm
Height Seated (Max) 1.2mm
Technical
Current - Output 10mA
Nominal Supply Current 50μA
Operating Supply Current 9mA
Analog IC - Other Type ANALOG CIRCUIT
Number of Channels 12
Supply Voltage-Min (Vsup) 2.3V
Temperature Grade INDUSTRIAL
Power Supplies 518V
Supply Voltage-Max (Vsup) 5.5V
Pin Count 24
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Subcategory Other Analog ICs
HTS Code 8542.39.00.01
Additional Feature ALSO REQUIRES A 7V TO 18V SUPPLY
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 24
Moisture Sensitivity Level (MSL) 2
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Physical
Weight 98.08935mg
Number of Pins 24
Package / Case HTSSOP EP
Mount Surface Mount
