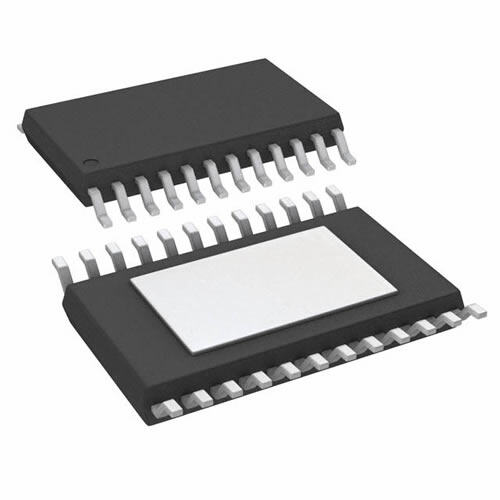

BUF12800AIPWPG4
RoHS
/
Package HTSSOP EP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant 8542.39.00.01 Nickel/Palladium/Gold (Ni/Pd/Au) HTSSOP EP op amp buffer circuit 7.8mm 10mA 2.3V 85C
PDF
/
Inventory: 6133
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case HTSSOP EP
Number of Pins 24
Weight 98.08935mg
Technical
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 2
Number of Terminations 24
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Additional Feature ALSO REQUIRES A 7V TO 18V SUPPLY
HTS Code 8542.39.00.01
Subcategory Other Analog ICs
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.65mm
Pin Count 24
Supply Voltage-Max (Vsup) 5.5V
Power Supplies 518V
Temperature Grade INDUSTRIAL
Supply Voltage-Min (Vsup) 2.3V
Number of Channels 12
Analog IC - Other Type ANALOG CIRCUIT
Operating Supply Current 9mA
Nominal Supply Current 50μA
Current - Output 10mA
Dimensions
Height Seated (Max) 1.2mm
Length 7.8mm
Width 4.4mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
