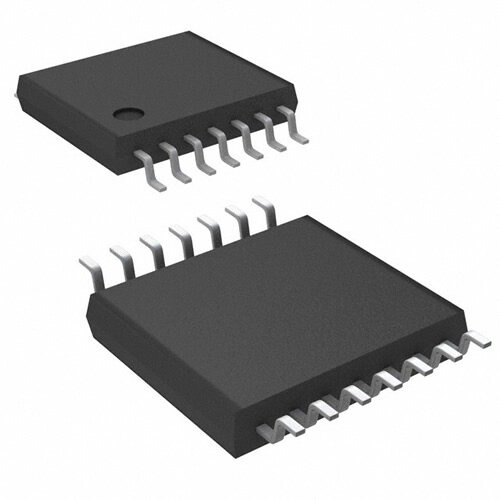

BUF04701AIPWRG4
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Contains Lead GULL WING BUFFER CMOS BUFFER Amplifier 10V/mus 125C 8MHz 93.98dB
PDF
/
Buying Options
Total Price: USD $0.95
Unit Price: USD $0.9504
≥1 USD $0.9504
Inventory: 4018
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 5mm
Height Seated (Max) 1.2mm
Technical
Bias Current-Max (IIB) @25C 0.00001μA
Min Dual Supply Voltage 1.75V
-3db Bandwidth 8MHz
Max Dual Supply Voltage 6V
Power Supply Rejection Ratio (PSRR) 93.98dB
Average Bias Current-Max (IIB) 0.00001μA
Neg Supply Voltage-Nom (Vsup) -5V
Input Offset Voltage (Vos) 7mV
Output Current per Channel 32mA
Current - Input Bias 10pA
Amplifier Type BUFFER
Slew Rate 10 V/μs
Supply Current-Max 6.8mA
Current - Output 32mA
Operating Supply Current 1.1mA
Min Supply Voltage 3.5V
Max Supply Voltage 12V
Temperature Grade AUTOMOTIVE
Number of Elements 4
Pin Count 14
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 4
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Subcategory Buffer Amplifier
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e4
Packaging Tape and Reel
Physical
Weight 58.910309mg
Number of Pins 14
Package / Case TSSOP
Mount Surface Mount
