3584JM
RoHS
RoHS compliant
RoHS compliantPackage TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant O-MBFM-P2 3584 Tube op amp amplifier circuit 0.00002muA 3mV 7000kHz 20MHz
PDF
/
Buying Options
Total Price: USD $192.15
Unit Price: USD $192.148
≥1 USD $192.148
Inventory: 62
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Technical
Power YES
Bias Current-Max (IIB) @25C 0.00002μA
Low-Bias YES
Low-Offset NO
Average Bias Current-Max (IIB) 0.00002μA
Voltage Gain 120dB
Unity Gain BW-Nom 7000 kHz
Neg Supply Voltage-Nom (Vsup) -150V
Gain Bandwidth Product 20MHz
Input Offset Voltage (Vos) 3mV
Output Current per Channel 15mA
Voltage - Supply, Single/Dual (±) ±70V~150V
Current - Input Bias 20pA
Common Mode Rejection Ratio 110 dB
Amplifier Type General Purpose
Architecture VOLTAGE-FEEDBACK
Slew Rate 150V/μs
Operating Supply Current 6.5mA
Number of Circuits 1
Operating Supply Voltage 150V
Qualification Status Not Qualified
JESD-30 Code O-MBFM-P2
Pin Count 2
Base Part Number 3584
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 150V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology BIPOLAR
Subcategory Operational Amplifier
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Packaging Tube
Operating Temperature 0°C~70°C
Physical

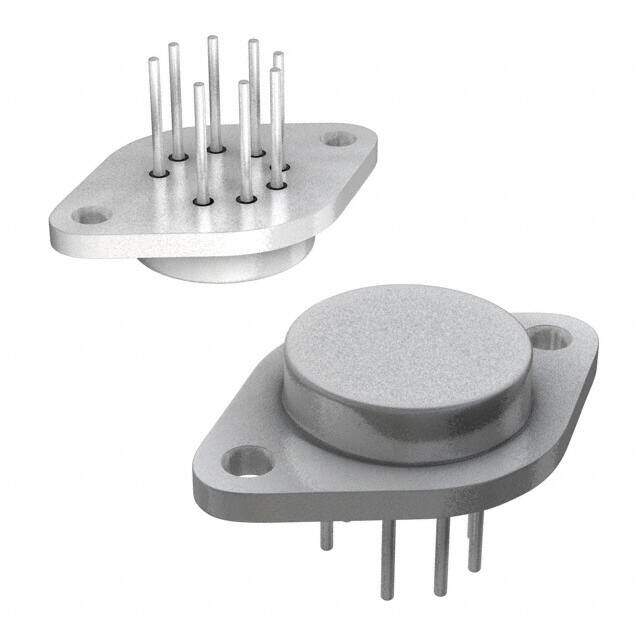

Package / Case TO-3-8
Mounting Type Through Hole
Mount Through Hole
