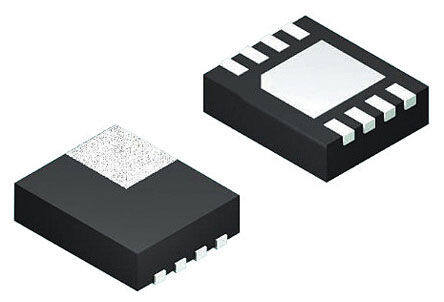

TS1106-20ITD833
RoHS
/
Package 8-WDFN Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Current Sense Amplifiers Curr-Sense Amp.1uA Bidirection G=20V/V
PDF
/
Inventory: 5581
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 3mm
Length 3mm
Height Seated (Max) 0.8mm
Technical
Voltage - Input Offset 30μV
Voltage - Supply, Single/Dual (±) 1.7V~5.25V
Current - Input Bias 300pA
Amplifier Type Current Sense
Current - Supply 760nA
Analog IC - Other Type ANALOG CIRCUIT
Number of Circuits 1
Supply Voltage-Max (Vsup) 5.25V
JESD-30 Code S-PDSO-N8
Terminal Pitch 0.65mm
Number of Functions 1
Terminal Form NO LEAD
Terminal Position DUAL
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2015
Packaging Strip
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 8-WDFN Exposed Pad
Mounting Type Surface Mount
