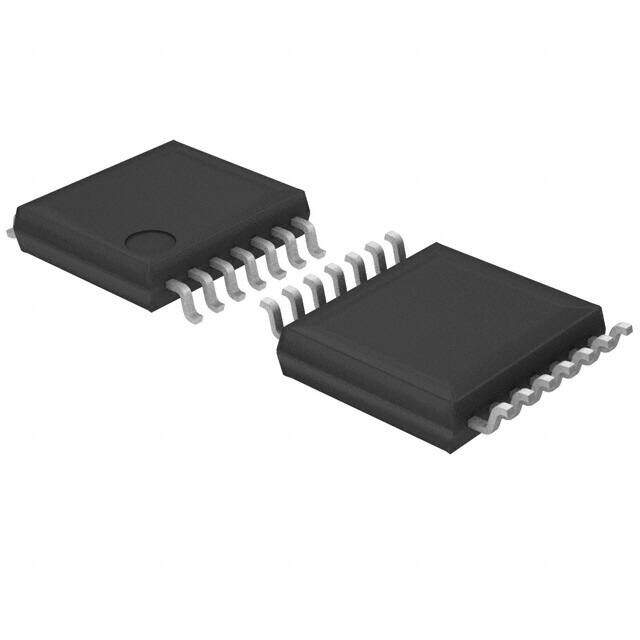

BA2902YFV-MGE2
RoHS
RoHS compliant
RoHS compliantPackage 14-TSSOP (0.173, 4.40mm Width)
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant EAR99 Cut Tape (CT) Automotive AEC-Q100 op amp amplifier circuit 5mm 0.25muA 5V 500kHz
PDF
/
Buying Options
Total Price: USD $1.35
Unit Price: USD $1.3464
≥1 USD $1.3464
≥10 USD $1.2056
≥100 USD $1.137664
≥500 USD $0.96932
≥1000 USD $0.910131
≥3000 USD $0.796365
Inventory: 92
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 5mm
Height Seated (Max) 1.25mm
Technical
Current - Output / Channel 30mA
Voltage - Input Offset 2mV
Supply Voltage Limit-Max 32V
Average Bias Current-Max (IIB) 0.25μA
Unity Gain BW-Nom 500 kHz
Bandwidth 500 kHz
Voltage - Supply, Single/Dual (±) 3V~36V ±1.5V~18V
Current - Input Bias 20nA
Common Mode Rejection Ratio 80 dB
Amplifier Type General Purpose
Slew Rate 0.2V/μs
Current - Supply 700μA
Number of Circuits 4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 4
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Subcategory Operational Amplifier
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Series Automotive, AEC-Q100
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Surface Mount YES
Package / Case 14-TSSOP (0.173, 4.40mm Width)
Mounting Type Surface Mount
