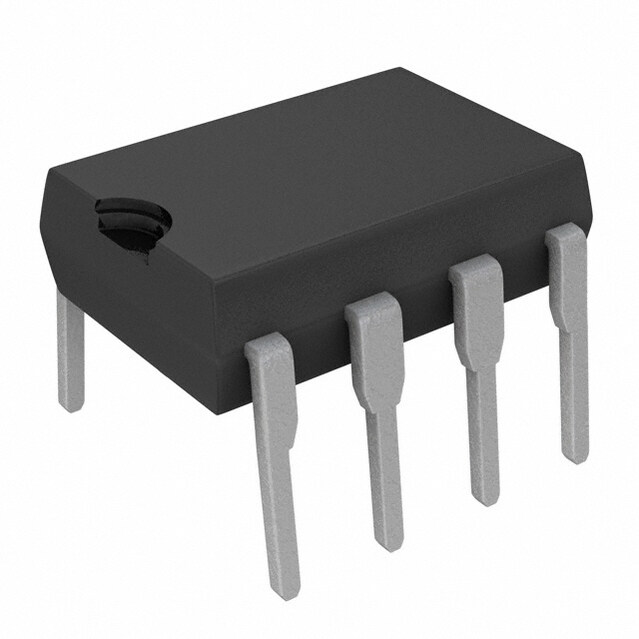

BA15532
RoHS
/
Package DIP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Lead Free Not Qualified 2012 OPERATIONAL AMPLIFIER op amp amplifier circuit 100dB 8V/mus -20C 20MHz
PDF
/
Buying Options
Total Price: USD $0.14
Unit Price: USD $0.1387
≥1 USD $0.1387
≥10 USD $0.114
≥100 USD $0.1102
≥500 USD $0.1064
≥1000 USD $0.10355
Inventory: 4236
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Package / Case DIP
Technical
Published 2012
Pbfree Code yes
Part Status Active
Number of Terminations 8
ECCN Code EAR99
Terminal Finish TIN/TIN COPPER
Max Operating Temperature 75°C
Min Operating Temperature -20°C
Subcategory Operational Amplifier
Technology BIPOLAR
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Number of Functions 2
Supply Voltage 15V
Time@Peak Reflow Temperature-Max (s) 10
Pin Count 8
Qualification Status Not Qualified
Power Supplies +-15V
Temperature Grade COMMERCIAL EXTENDED
Number of Channels 2
Operating Supply Current 8mA
Supply Current-Max 16mA
Slew Rate 8 V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type OPERATIONAL AMPLIFIER
Common Mode Rejection Ratio 100 dB
Current - Input Bias 200nA
Output Current per Channel 38mA
Input Offset Voltage (Vos) 500μV
Gain Bandwidth Product 20MHz
Neg Supply Voltage-Nom (Vsup) -15V
Unity Gain BW-Nom 20000 kHz
Average Bias Current-Max (IIB) 0.8μA
Low-Offset NO
Frequency Compensation YES
Bias Current-Max (IIB) @25C 0.8μA
Voltage Gain-Min 10000
Common-mode Reject Ratio-Min 70 dB
Dimensions
Height Seated (Max) 3.7mm
Length 9.3mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
