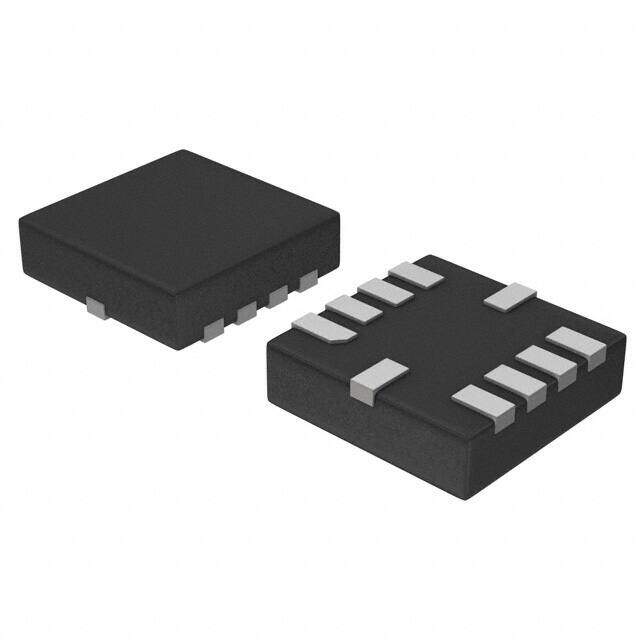

MC34072AMTTBG
RoHS
RoHS compliant
RoHS compliantPackage 10-WFQFN
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant EAR99 MC34072A Nickel/Palladium/Gold (Ni/Pd/Au) op amp buffer circuit 2.6mm 0.7muA 500muV 4500kHz
PDF
/
Buying Options
Total Price: USD $0.82
Unit Price: USD $0.8184
≥1 USD $0.8184
≥10 USD $0.73128
≥100 USD $0.694144
≥500 USD $0.532928
≥1000 USD $0.470976
≥3000 USD $0.446195
Inventory: 1098
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 2.6mm
Length 2.6mm
Height 750μm
Technical
Nominal Gain Bandwidth Product 4.5MHz
Bias Current-Max (IIB) @25C 0.5μA
Frequency Compensation YES
Low-Offset NO
Power Supply Rejection Ratio (PSRR) 70dB
Average Bias Current-Max (IIB) 0.7μA
Voltage Gain 100dB
Unity Gain BW-Nom 4500 kHz
Neg Supply Voltage-Nom (Vsup) -15V
Gain Bandwidth Product 4.5MHz
Input Offset Voltage (Vos) 500μV
Output Current per Channel 30mA
Halogen Free Halogen Free
Voltage - Supply, Single/Dual (±) 3V~44V ±1.5V~22V
Current - Input Bias 100nA
Common Mode Rejection Ratio 70 dB
Amplifier Type General Purpose
Architecture VOLTAGE-FEEDBACK
Slew Rate 13V/μs
Output Current 30mA
Nominal Supply Current 3.8mA
Operating Supply Current 1.9mA
Power Supplies +-15V
Number of Elements 2
Operating Supply Voltage 22V
Pin Count 10
Base Part Number MC34072A
Terminal Pitch 0.5mm
Supply Voltage 15V
Number of Functions 2
Terminal Position QUAD
Technology BIPOLAR
Packing Method TAPE AND REEL
Subcategory Operational Amplifier
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C
Physical
Number of Pins 10
Surface Mount YES
Package / Case 10-WFQFN
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 5 Weeks
