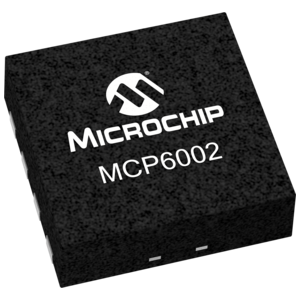

MCP6002T-E/MCVAO
RoHS
RoHS compliant
RoHS compliantPackage 8-VFDFN Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant R-PDSO-N8 MCP6002 Tape & Reel (TR) op amp buffer circuit 3mm 1pA 5V 1000kHz
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.381309
≥1 USD $0.381309
≥10 USD $0.359724
≥100 USD $0.339353
≥500 USD $0.320149
≥1000 USD $0.302031
Inventory: 1228
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 8-VFDFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Subcategory Operational Amplifier
Technology CMOS
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 2
Supply Voltage 5V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number MCP6002
JESD-30 Code R-PDSO-N8
Output Type Rail-to-Rail
Number of Circuits 2
Current - Supply 100μA
Slew Rate 0.6V/μs
Amplifier Type General Purpose
Common Mode Rejection Ratio 76 dB
Current - Input Bias 1pA
Voltage - Supply, Single/Dual (±) 1.8V~6V
Gain Bandwidth Product 1MHz
Unity Gain BW-Nom 1000 kHz
Supply Voltage Limit-Max 7V
Voltage - Input Offset 4.5mV
Dimensions
Height Seated (Max) 1mm
Length 3mm
Compliance
RoHS Status ROHS3 Compliant
