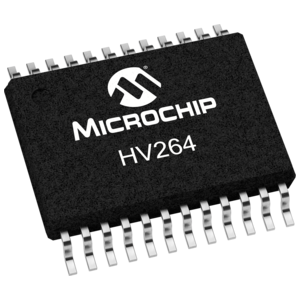

HV264TS-G
RoHS
RoHS compliant
RoHS compliantPackage 24-TSSOP (0.173, 4.40mm Width)
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant e3 HV264 Matte Tin (Sn) - annealed op amp buffer circuit 7.8mm 50nA 5V 55dB
PDF
/
Buying Options
Total Price: USD $11.11
Unit Price: USD $11.110118
≥1 USD $11.110118
≥10 USD $10.221884
≥100 USD $9.47493
≥500 USD $17.53985
≥1000 USD $16.9556
Inventory: 6
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 7.8mm
Height Seated (Max) 0.85mm
Technical
Input Bias Current 50nA
-3db Bandwidth 25kHz
Power Supply Rejection Ratio (PSRR) 55dB
Output Current per Channel 3mA
Voltage - Supply, Single/Dual (±) 4.5V~5.5V 50V~200V
Amplifier Type General Purpose
Slew Rate 9V/μs
Nominal Supply Current 300μA
Operating Supply Current 300μA
Analog IC - Other Type ANALOG CIRCUIT
Number of Circuits 4
Operating Supply Voltage 5V
Base Part Number HV264
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 4
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Additional Feature CAN ALSO OPERATE AS VPP FROM 50V TO 200V
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 24
Package / Case 24-TSSOP (0.173, 4.40mm Width)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
