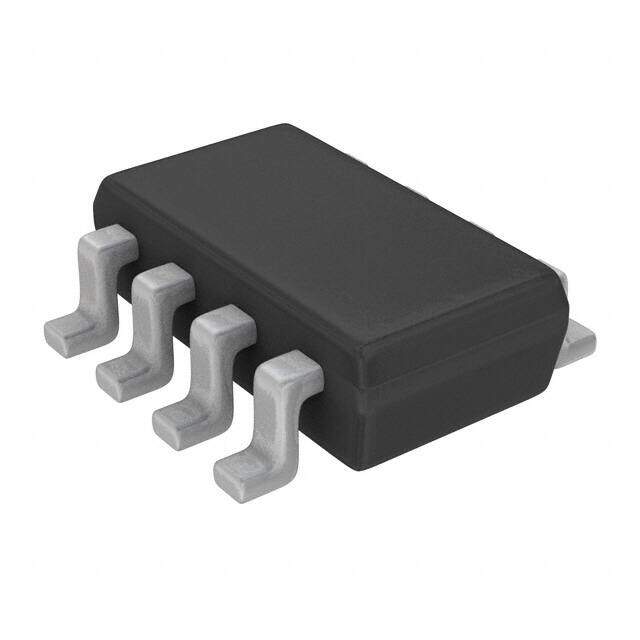

MAX4453EZA+T
RoHS
RoHS compliant
RoHS compliantPackage SOT-23-8 Thin, TSOT-23-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant R-PDSO-G8 MAX4453 Matte Tin (Sn) op amp amplifier circuit 1.45mm 3muA 3/5V 200MHz
PDF
/
Buying Options
Total Price: USD $18.51
Unit Price: USD $18.5136
≥1 USD $18.5136
≥10 USD $15.1905
≥100 USD $14.7155
≥500 USD $14.24145
≥1000 USD $13.76645
Inventory: 1222
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case SOT-23-8 Thin, TSOT-23-8
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2005
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Subcategory Operational Amplifier
Technology BIPOLAR
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 2
Supply Voltage 5V
Terminal Pitch 0.95mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number MAX4453
Pin Count 8
JESD-30 Code R-PDSO-G8
Qualification Status Not Qualified
Output Type Rail-to-Rail
Power Supplies 3/5V
Number of Circuits 2
Current - Supply 620μA
Slew Rate 95V/μs
Amplifier Type Voltage Feedback
Common Mode Rejection Ratio 100 dB
Current - Input Bias 800nA
Voltage - Supply, Single/Dual (±) 2.7V~5.25V
Average Bias Current-Max (IIB) 3μA
Low-Offset NO
Frequency Compensation YES
Supply Voltage Limit-Max 6V
Voltage - Input Offset 400μV
Current - Output / Channel 22mA
Low-Bias NO
Micropower NO
-3db Bandwidth 200MHz
Programmable Power NO
Wideband YES
Power NO
Voltage Gain-Min 1000
Dimensions
Height Seated (Max) 1.45mm
Compliance
RoHS Status ROHS3 Compliant
