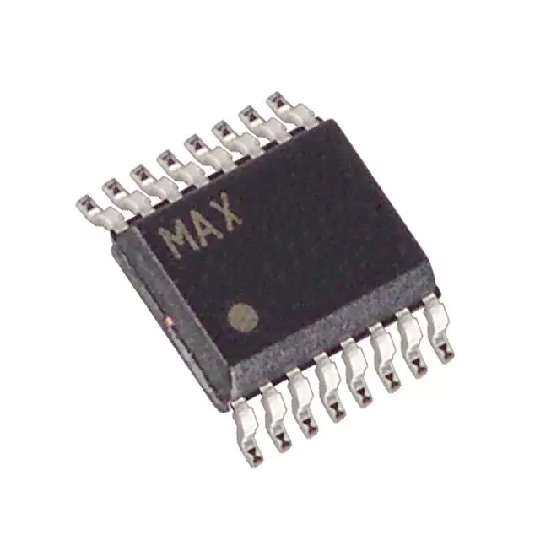

MAX4284EEE-T
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 Tin/Lead (Sn/Pb) SSOP op amp buffer circuit 1.75mm 0.01muA 500muV 2000kHz
PDF
/
Buying Options
Total Price: USD $3.09
Unit Price: USD $3.091356
≥1 USD $3.091356
≥10 USD $2.916376
≥100 USD $2.751292
≥500 USD $2.595562
≥1000 USD $2.448644
Inventory: 1251
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 1.75mm
Technical
Power NO
Wideband NO
Programmable Power NO
Min Dual Supply Voltage 1.25V
Micropower YES
Low-Bias NO
Max Dual Supply Voltage 2.75V
Frequency Compensation YES
Low-Offset NO
Average Bias Current-Max (IIB) 0.01μA
Voltage Gain 120dB
Unity Gain BW-Nom 2000 kHz
Gain Bandwidth Product 2MHz
Input Offset Voltage (Vos) 500μV
Output Current per Channel 65mA
Current - Input Bias 50pA
Common Mode Rejection Ratio 60 dB
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Slew Rate 0.7 V/μs
Current - Output 65mA
Nominal Supply Current 320μA
Operating Supply Current 320μA
Number of Channels 4
Temperature Grade INDUSTRIAL
Power Supplies 3/5V
Operating Supply Voltage 2.75V
Qualification Status Not Qualified
Pin Count 16
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.635mm
Supply Voltage 3V
Number of Functions 4
Peak Reflow Temperature (Cel) 240
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Packing Method TAPE AND REEL
Subcategory Operational Amplifier
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1
Pbfree Code no
JESD-609 Code e0
Physical
Number of Pins 16
Package / Case SSOP
Mount Surface Mount
