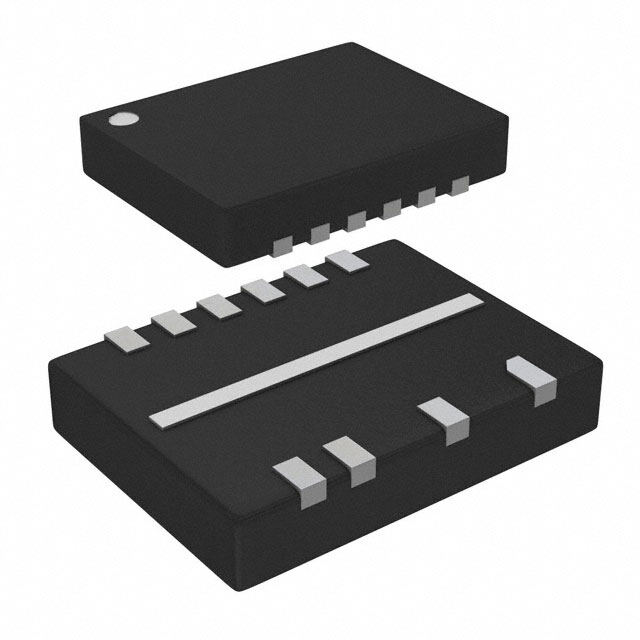

LT6018IDE#TRPBF
RoHS
RoHS compliant
RoHS compliantPackage 10-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
ROHS3Compliant LT6018 Tape & Reel (TR) PRODUCTION (Last Updated: 3weeks ago) op amp buffer circuit 4mm 8.5mA 8muV 15kHz
PDF
/
Buying Options
Total Price: USD $2.95
Unit Price: USD $2.946148
≥1 USD $2.946148
≥10 USD $2.568032
≥30 USD $2.343527
≥100 USD $2.116395
≥500 USD $2.011363
≥1000 USD $1.964098
Inventory: 1209
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 4mm
Height Seated (Max) 0.8mm
Technical
Voltage Gain-Min 126
Input Offset Current-Max (IIO) 0.06μA
Power NO
Wideband NO
Programmable Power NO
Micropower NO
Low-Bias NO
Frequency Compensation NO
Low-Offset NO
Unity Gain BW-Nom 15 kHz
Neg Supply Voltage-Nom (Vsup) -5V
Gain Bandwidth Product 15MHz
Input Offset Voltage (Vos) 8μV
Output Current per Channel 100mA
Voltage - Supply, Single/Dual (±) 8V~33V ±4V~16.5V
Current - Input Bias 150nA
Common Mode Rejection Ratio 133 dB
Amplifier Type General Purpose
Architecture VOLTAGE-FEEDBACK
Slew Rate 30V/μs
Supply Current-Max 8.5mA
Operating Supply Current 7.2mA
Number of Circuits 1
Pin Count 12
Base Part Number LT6018
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
Technology BIPOLAR
Packing Method TR
Subcategory Operational Amplifier
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 12
Package / Case 10-WFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 3 weeks ago)
Factory Lead Time 26 Weeks
