LT1102CH
RoHS
/

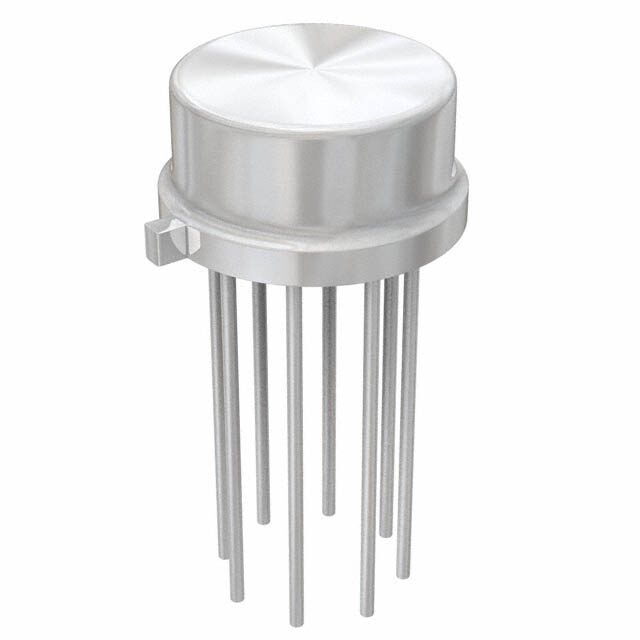

Package TO-205-8, TO-5-8 Metal Can
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant O-MBCY-W8 LT1102 Tin/Lead (Sn/Pb) op amp buffer circuit 0.0004muA -20V 3.5MHz 0C~70C
PDF
/
Inventory: 6140
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Voltage Gain-Max 100
Non-linearity-Max 0.0048%
Voltage Gain-Min 10
Input Offset Current-Max (IIO) 0.00022μA
Neg Supply Voltage-Max (Vsup) -20V
-3db Bandwidth 3.5MHz
Voltage - Input Offset 200μV
Supply Voltage Limit-Max 20V
Average Bias Current-Max (IIB) 0.0004μA
Neg Supply Voltage-Nom (Vsup) -15V
Gain Bandwidth Product 3.5MHz
Voltage - Supply, Single/Dual (±) ±9V~18V
Current - Input Bias 4pA
Amplifier Type Instrumentation
Slew Rate 30V/μs
Current - Supply 3.4mA
Number of Circuits 1
Qualification Status Not Qualified
JESD-30 Code O-MBCY-W8
Pin Count 8
Base Part Number LT1102
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 15V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form WIRE
Terminal Position BOTTOM
Technology FET
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Published 2007
Packaging Bulk
Operating Temperature 0°C~70°C
Physical
Surface Mount NO
Package / Case TO-205-8, TO-5-8 Metal Can
Mounting Type Through Hole
