LT1013AMH/883
RoHS
/

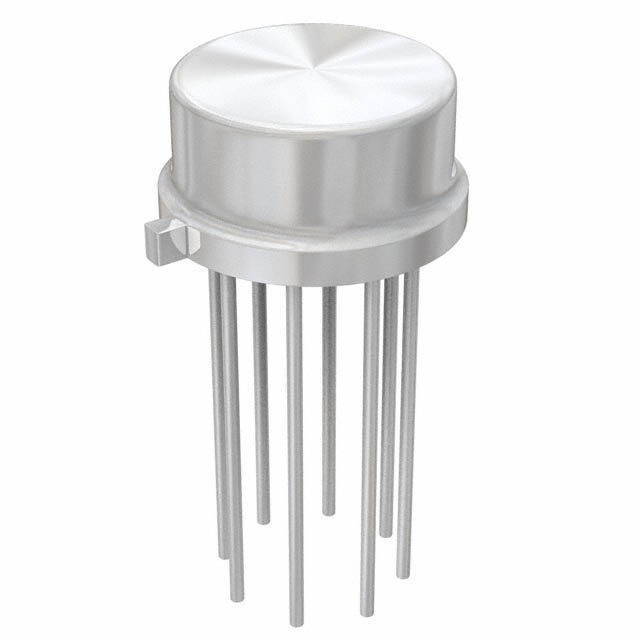

Package TO-205-8, TO-5-8 Metal Can
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Not Qualified WIRE 2013 Through Hole op amp amplifier circuit 114dB 0.4V/us 125C 300muV
PDF
/
Inventory: 9044
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case TO-205-8, TO-5-8 Metal Can
Surface Mount NO
Technical
Packaging Tube
Published 2013
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Subcategory Operational Amplifier
Technology BIPOLAR
Terminal Position BOTTOM
Terminal Form WIRE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 2
Supply Voltage 15V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number LT1013
Pin Count 8
JESD-30 Code O-MBCY-W8
Qualification Status Not Qualified
Operating Temperature (Max) 125°C
Operating Temperature (Min) -55°C
Power Supplies 5/+-15V
Temperature Grade MILITARY
Supply Current-Max 1.2mA
Slew Rate 0.4 V/us
Architecture VOLTAGE-FEEDBACK
Amplifier Type OPERATIONAL AMPLIFIER
Common Mode Rejection Ratio 114 dB
Neg Supply Voltage-Nom (Vsup) -15V
Average Bias Current-Max (IIB) 0.03μA
Low-Offset YES
Frequency Compensation YES
Supply Voltage Limit-Max 22V
Micropower YES
Bias Current-Max (IIB) @25C 0.035μA
Screening Level MIL-STD-883
Neg Supply Voltage-Max (Vsup) -22V
Input Offset Voltage-Max 300μV
Voltage Gain-Min 500000
Slew Rate-Min 0.2 V/us
Compliance
RoHS Status Non-RoHS Compliant
