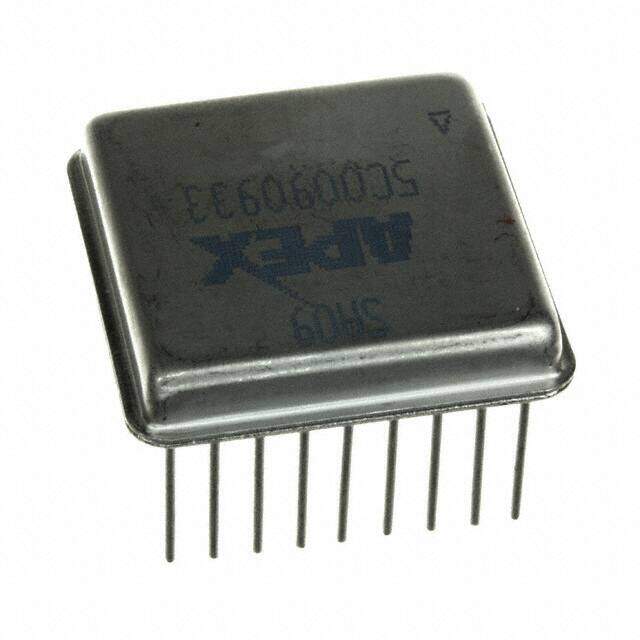

SA09
RoHS
RoHS compliant
RoHS compliantPackage 18-DIP Module
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
IC AMP PWM 5-40V 5A 18-DIP
PDF
/
Inventory: 9939
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Current - Output / Channel 5A
Voltage - Supply, Single/Dual (±) 5V~40V
Output Current-Max 7.5A
Amplifier Type PWM (Audio, Motor)
Current - Supply 90mA
Analog IC - Other Type BRUSH DC MOTOR CONTROLLER
Number of Circuits 2
Supply Voltage-Min (Vsup) 10V
Supply Voltage-Max (Vsup) 16V
Qualification Status Not Qualified
JESD-30 Code R-MDMA-P18
Pin Count 18
Base Part Number SA*
Supply Voltage 12V
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
ECCN Code EAR99
Number of Terminations 18
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Surface Mount NO
Package / Case 18-DIP Module
Mounting Type Through Hole
