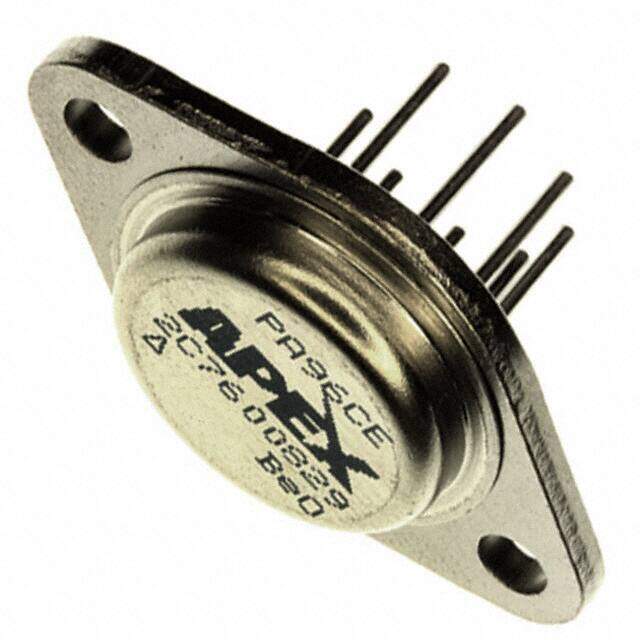

PA96CE
RoHS
RoHS compliant
RoHS compliantPackage TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant O-MBFM-P8 PA96 Bulk op amp amplifier circuit 0.0002muA 1mV 175000kHz 175MHz
PDF
/
Buying Options
Total Price: USD $131.26
Unit Price: USD $131.264933
≥1 USD $131.264933
≥10 USD $123.834843
≥100 USD $116.825323
≥500 USD $110.212567
≥1000 USD $103.974118
Inventory: 1165
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Average Bias Current-Max (IIB) 0.0002μA
Unity Gain BW-Nom 175000 kHz
Neg Supply Voltage-Nom (Vsup) -100V
Gain Bandwidth Product 175MHz
Input Offset Voltage (Vos) 1mV
Output Current per Channel 1.5A
Voltage - Supply, Single/Dual (±) 30V~300V ±15V~150V
Current - Input Bias 200pA
Common Mode Rejection Ratio 92 dB
Amplifier Type Power
Slew Rate 250V/μs
Operating Supply Current 30mA
Number of Circuits 1
Qualification Status Not Qualified
JESD-30 Code O-MBFM-P8
Pin Count 2
Base Part Number PA96
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 100V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Subcategory Operational Amplifier
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Apex Precision Power?
Published 2013
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Package / Case TO-3-8
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
