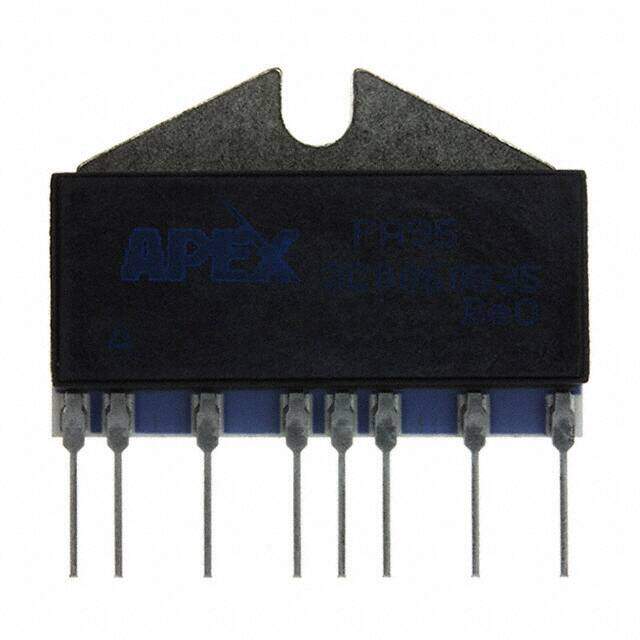

PA95
RoHS
/
Package 12-SIP, 8 Leads
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant R-PSFM-T8 PA95 Matte Tin (Sn) - with Nickel (Ni) barrier op amp buffer circuit 2.54mm 2.2mA 500muV 10000kHz
PDF
/
Buying Options
Total Price: USD $130.69
Unit Price: USD $130.691915
≥1 USD $130.691915
≥10 USD $123.294263
≥100 USD $116.315344
≥500 USD $109.731455
≥1000 USD $103.520234
Inventory: 1104
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Power YES
Wideband NO
Neg Supply Voltage-Max (Vsup) -450V
Bias Current-Max (IIB) @25C 0.002μA
Low-Bias NO
Supply Voltage Limit-Max 450V
Low-Offset NO
Average Bias Current-Max (IIB) 0.002μA
Unity Gain BW-Nom 10000 kHz
Neg Supply Voltage-Nom (Vsup) -300V
Gain Bandwidth Product 10MHz
Input Offset Voltage (Vos) 500μV
Output Current per Channel 100mA
Voltage - Supply, Single/Dual (±) 100V~900V ±50V~450V
Current - Input Bias 200pA
Common Mode Rejection Ratio 98 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 30V/μs
Supply Current-Max 2.2mA
Operating Supply Current 1.6mA
Number of Circuits 1
Power Supplies +-50/+-450V
Qualification Status Not Qualified
JESD-30 Code R-PSFM-T8
Base Part Number PA95
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Supply Voltage 300V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Subcategory Operational Amplifier
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e3
Series Apex Precision Power?
Published 2011
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Package / Case 12-SIP, 8 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
