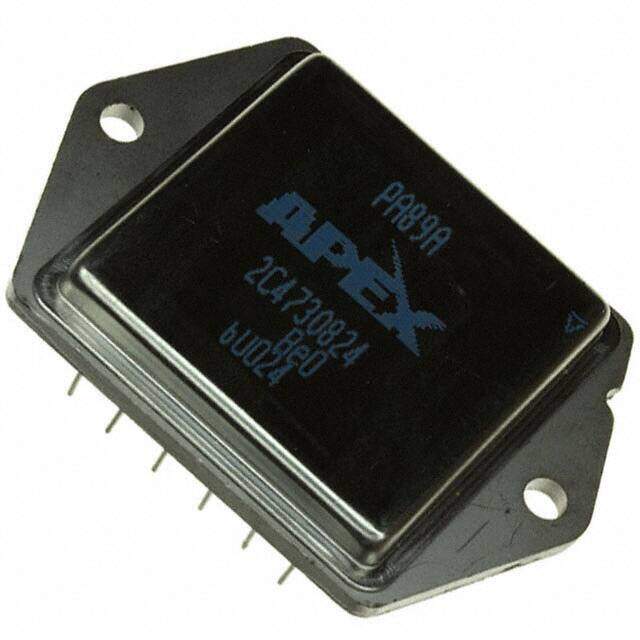

PA89A
RoHS
RoHS compliant
RoHS compliantPackage 12-DIP Module
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 PA89 Nickel (Ni) op amp amplifier circuit 5.08mm 6mA 250muV 10000kHz
PDF
/
Buying Options
Total Price: USD $667.75
Unit Price: USD $667.752557
≥1 USD $667.752557
≥10 USD $629.955241
≥100 USD $594.297397
≥500 USD $560.657923
≥1000 USD $528.922568
Inventory: 1274
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 12-DIP Module
Technical
Operating Temperature -25°C~85°C
Packaging Tube
Published 2015
Series Apex Precision Power?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Terminal Finish Nickel (Ni)
Subcategory Operational Amplifier
Technology MOS
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 500V
Terminal Pitch 5.08mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PA89
Pin Count 12
Qualification Status Not Qualified
Power Supplies +-75/+-600V
Number of Circuits 1
Operating Supply Current 4.8mA
Supply Current-Max 6mA
Slew Rate 16V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 110 dB
Current - Input Bias 3pA
Voltage - Supply, Single/Dual (±) 150V~1200V ±75V~600V
Output Current per Channel 75mA
Input Offset Voltage (Vos) 250μV
Gain Bandwidth Product 10MHz
Neg Supply Voltage-Nom (Vsup) -500V
Unity Gain BW-Nom 10000 kHz
Low-Offset NO
Frequency Compensation NO
Supply Voltage Limit-Max 600V
Low-Bias YES
Micropower NO
Programmable Power NO
Neg Supply Voltage-Max (Vsup) -600V
Wideband NO
Power YES
Voltage Gain-Min 250000
Common-mode Reject Ratio-Min 96 dB
Compliance
RoHS Status RoHS Compliant
