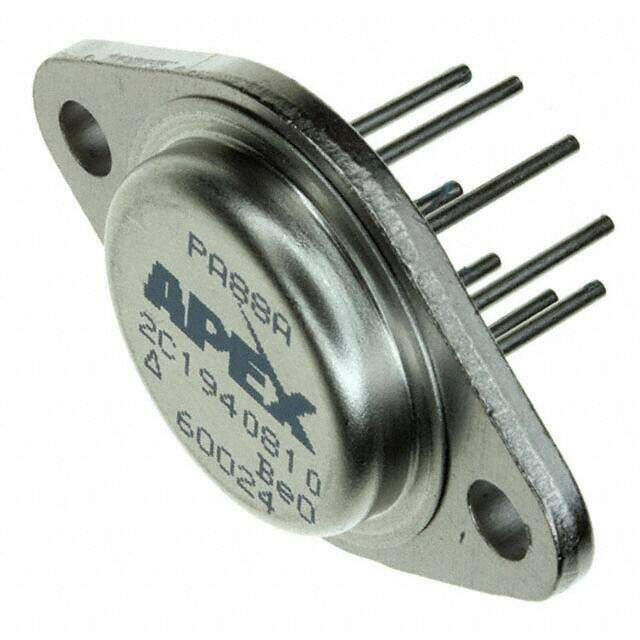

PA88A
RoHS
RoHS compliant
RoHS compliantPackage TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant O-MBCY-P8 PA88 Nickel (Ni) op amp buffer circuit 2mA 250muV 2100kHz 2.1MHz
PDF
/
Buying Options
Total Price: USD $30.41
Unit Price: USD $30.41425
≥1 USD $30.41425
≥10 USD $24.95555
≥100 USD $24.1756
≥500 USD $23.39565
≥1000 USD $22.6157
Inventory: 1164
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Common-mode Reject Ratio-Min 90 dB
Voltage Gain-Min 63000
Power YES
Wideband NO
Neg Supply Voltage-Max (Vsup) -225V
Programmable Power NO
Micropower NO
Low-Bias YES
Supply Voltage Limit-Max 225V
Frequency Compensation NO
Low-Offset NO
Unity Gain BW-Nom 2100 kHz
Neg Supply Voltage-Nom (Vsup) -200V
Gain Bandwidth Product 2.1MHz
Input Offset Voltage (Vos) 250μV
Output Current per Channel 100mA
Voltage - Supply, Single/Dual (±) 30V~450V ±15V~225V
Current - Input Bias 3pA
Common Mode Rejection Ratio 110 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 30V/μs
Supply Current-Max 2mA
Operating Supply Current 1.7mA
Number of Circuits 1
Qualification Status Not Qualified
JESD-30 Code O-MBCY-P8
Pin Count 2
Base Part Number PA88
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 200V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology MOS
Subcategory Operational Amplifier
Terminal Finish Nickel (Ni)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Apex Precision Power?
Published 2012
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Package / Case TO-3-8
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
