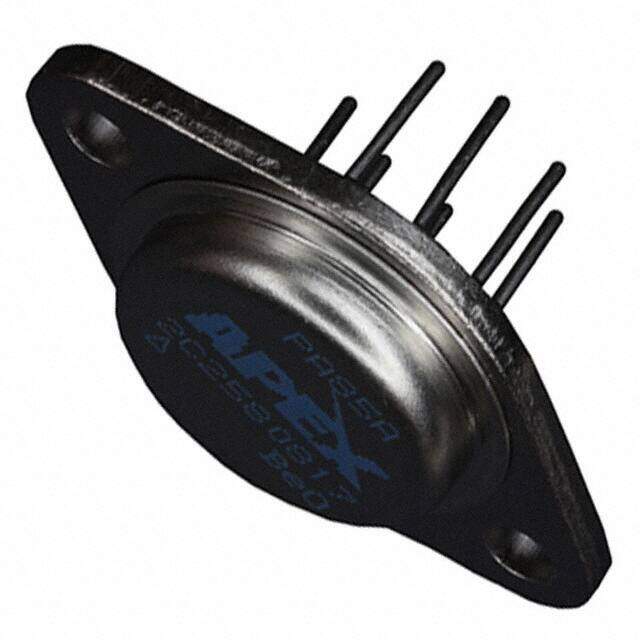

PA85A
RoHS
/
Package TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant EAR99 PA85 Nickel (Ni) op amp amplifier circuit 25mA 250muV 100000kHz 100MHz
PDF
/
Buying Options
Total Price: USD $205.95
Unit Price: USD $205.953457
≥1 USD $205.953457
≥10 USD $194.295711
≥100 USD $183.297842
≥500 USD $172.922493
≥1000 USD $163.134431
Inventory: 1211
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Common-mode Reject Ratio-Min 90 dB
Voltage Gain-Min 63000
Power YES
Wideband NO
Neg Supply Voltage-Max (Vsup) -225V
Programmable Power NO
Micropower NO
Low-Bias YES
Supply Voltage Limit-Max 225V
Frequency Compensation NO
Low-Offset NO
Unity Gain BW-Nom 100000 kHz
Neg Supply Voltage-Nom (Vsup) -150V
Gain Bandwidth Product 100MHz
Input Offset Voltage (Vos) 250μV
Output Current per Channel 200mA
Voltage - Supply, Single/Dual (±) 30V~450V ±15V~225V
Current - Input Bias 3pA
Common Mode Rejection Ratio 110 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 1000V/μs
Supply Current-Max 25mA
Operating Supply Current 21mA
Number of Circuits 1
Qualification Status Not Qualified
Pin Count 2
Base Part Number PA85
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 150V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology MOS
Subcategory Operational Amplifier
Terminal Finish Nickel (Ni)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Apex Precision Power?
Published 2011
Packaging Tray
Operating Temperature -25°C~85°C
Physical
Number of Pins 8
Package / Case TO-3-8
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
Alternative Model
