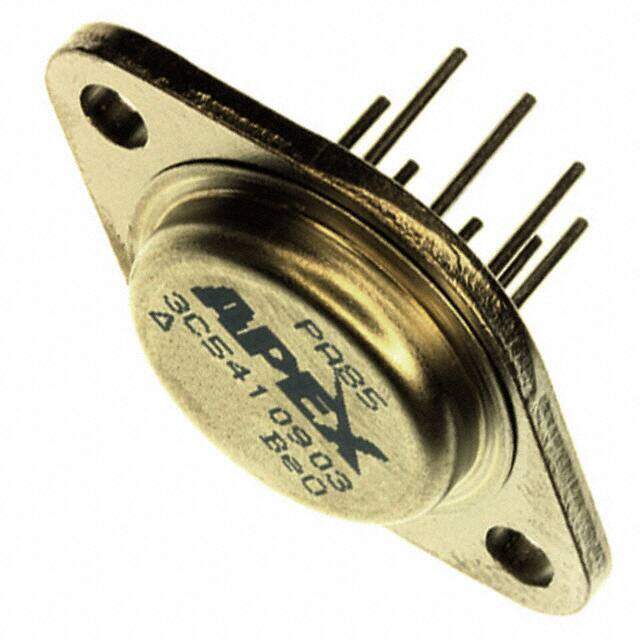

PA85
RoHS
RoHS compliant
RoHS compliantPackage TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant PA85 Bulk Apex Precision Power? op amp buffer circuit 38.9mm 5pA 150V 111dB
PDF
/
Buying Options
Total Price: USD $30.41
Unit Price: USD $30.41425
≥1 USD $30.41425
≥10 USD $24.95555
≥100 USD $24.1756
≥500 USD $23.39565
≥1000 USD $22.6157
Inventory: 632
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 25.4mm
Length 38.9mm
Height 6.4mm
Technical
Dual Supply Voltage 150V
Current - Output / Channel 200mA
Voltage - Input Offset 500μV
Voltage Gain 111dB
Gain Bandwidth Product 100MHz
Input Offset Voltage (Vos) 500μV
Output Current per Channel 200mA
Voltage - Supply, Single/Dual (±) 30V~450V ±15V~225V
Current - Input Bias 5pA
Amplifier Type Power
Slew Rate 1000V/μs
Current - Supply 21mA
Operating Supply Current 21mA
Number of Circuits 1
Base Part Number PA85
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Apex Precision Power?
Published 2011
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Supplier Device Package TO-3-8
Number of Pins 8
Package / Case TO-3-8
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
