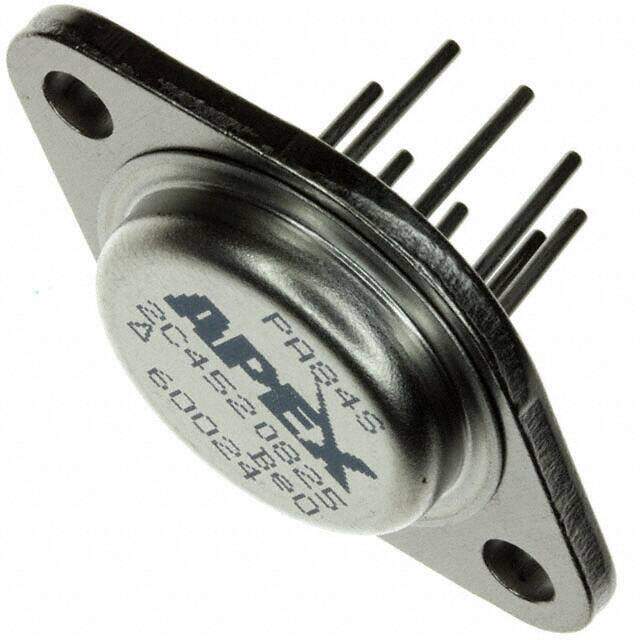

PA84S
RoHS
/
Package TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant O-MBFM-P8 PA84 Nickel (Ni) op amp buffer circuit 7.5mA 1.5mV 75000kHz 75MHz
PDF
/
Buying Options
Total Price: USD $154.98
Unit Price: USD $154.980015
≥1 USD $154.980015
≥10 USD $146.207566
≥100 USD $137.931664
≥500 USD $130.124208
≥1000 USD $122.758692
Inventory: 4673
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Power YES
Bias Current-Max (IIB) @25C 0.00005μA
Low-Bias YES
Low-Offset NO
Average Bias Current-Max (IIB) 0.00005μA
Unity Gain BW-Nom 75000 kHz
Neg Supply Voltage-Nom (Vsup) -150V
Gain Bandwidth Product 75MHz
Input Offset Voltage (Vos) 1.5mV
Output Current per Channel 40mA
Voltage - Supply, Single/Dual (±) 30V~300V ±15V~150V
Current - Input Bias 5pA
Common Mode Rejection Ratio 130 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 200V/μs
Supply Current-Max 7.5mA
Operating Supply Current 5.5mA
Number of Circuits 1
Qualification Status Not Qualified
JESD-30 Code O-MBFM-P8
Pin Count 2
Base Part Number PA84
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 150V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology BIPOLAR
Subcategory Operational Amplifier
Terminal Finish Nickel (Ni)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Apex Precision Power?
Published 2012
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Package / Case TO-3-8
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
