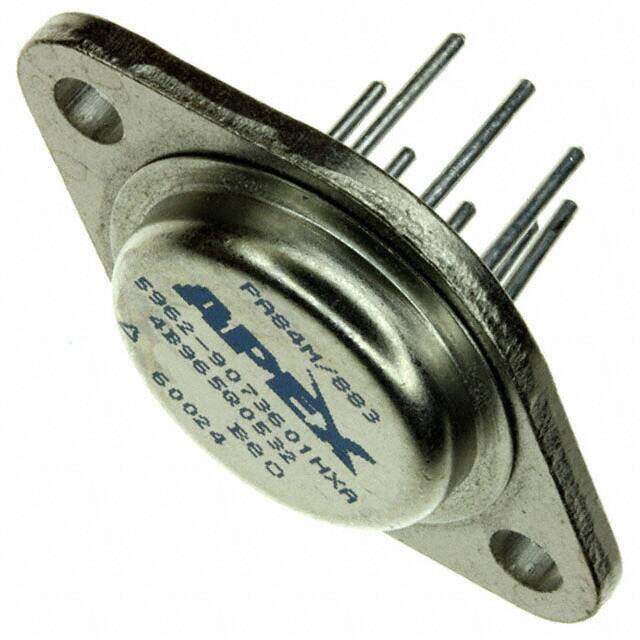

PA84M/883
RoHS
/
Package TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant O-MBFM-P8 PA84 Tin/Lead (Sn/Pb) op amp buffer circuit 0.00005muA 1.5mV 75000kHz 75MHz
PDF
/
Buying Options
Total Price: USD $116.31
Unit Price: USD $116.313721
≥1 USD $116.313721
≥10 USD $109.729929
≥100 USD $103.518795
≥500 USD $97.659245
≥1000 USD $92.13137
Inventory: 1151
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Common-mode Reject Ratio-Min 90 dB
Power YES
Screening Level 38535Q/M;38534H;883B
Bias Current-Max (IIB) @25C 0.00005μA
Low-Bias YES
Current - Output / Channel 40mA
Voltage - Input Offset 1.5mV
Low-Offset NO
Average Bias Current-Max (IIB) 0.00005μA
Unity Gain BW-Nom 75000 kHz
Gain Bandwidth Product 75MHz
Voltage - Supply, Single/Dual (±) 30V~300V ±15V~150V
Current - Input Bias 5pA
Common Mode Rejection Ratio 90 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 200V/μs
Current - Supply 5.5mA
Number of Circuits 1
Qualification Status Not Qualified
JESD-30 Code O-MBFM-P8
Pin Count 8
Base Part Number PA84
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology BIPOLAR
Subcategory Operational Amplifier
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series Apex Precision Power?
Published 2013
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Surface Mount NO
Package / Case TO-3-8
Mounting Type Through Hole
Supply Chain
Factory Lead Time 8 Weeks
