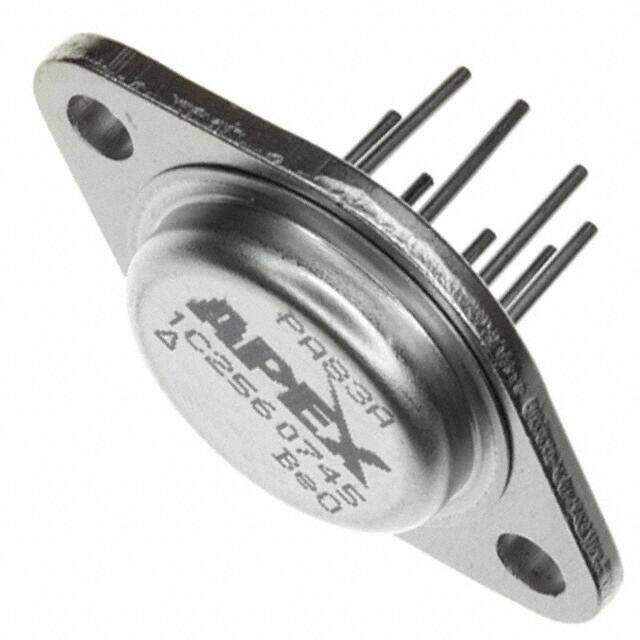

PA83A
RoHS
RoHS compliant
RoHS compliantPackage TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant O-MBFM-P8 PA83 Nickel (Ni) op amp buffer circuit 8.5mA 500muV 5000kHz 3MHz
PDF
/
Buying Options
Total Price: USD $133.36
Unit Price: USD $133.3553
≥1 USD $133.3553
≥10 USD $128.9093
≥100 USD $115.57415
Inventory: 102
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Voltage Gain-Min 63000
Power YES
Low-Bias YES
Frequency Compensation YES
Low-Offset NO
Unity Gain BW-Nom 5000 kHz
Neg Supply Voltage-Nom (Vsup) -150V
Gain Bandwidth Product 3MHz
Input Offset Voltage (Vos) 500μV
Output Current per Channel 75mA
Voltage - Supply, Single/Dual (±) 30V~300V ±15V~150V
Current - Input Bias 3pA
Common Mode Rejection Ratio 130 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 30V/μs
Supply Current-Max 8.5mA
Operating Supply Current 6mA
Number of Circuits 1
Qualification Status Not Qualified
JESD-30 Code O-MBFM-P8
Pin Count 2
Base Part Number PA83
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 150V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology BIPOLAR
Subcategory Operational Amplifier
Terminal Finish Nickel (Ni)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Apex Precision Power?
Published 2012
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Package / Case TO-3-8
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
