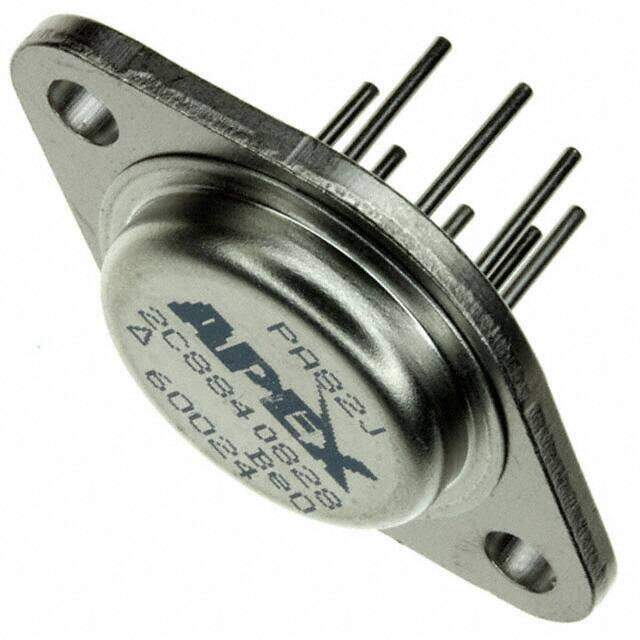

PA82J
RoHS
RoHS compliant
RoHS compliantPackage TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 PA82 Nickel (Ni) op amp amplifier circuit 0.00005muA 1.5mV 5000kHz 5MHz
PDF
/
Buying Options
Total Price: USD $29.03
Unit Price: USD $29.032
≥1 USD $29.032
≥10 USD $23.82125
≥100 USD $23.0774
≥500 USD $22.3326
≥1000 USD $21.5878
Inventory: 704
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-3-8
Number of Pins 8
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Published 2012
Series Apex Precision Power?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Nickel (Ni)
Subcategory Operational Amplifier
Technology BIPOLAR
Terminal Position BOTTOM
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 150V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PA82
Pin Count 2
Qualification Status Not Qualified
Number of Circuits 1
Operating Supply Current 6.5mA
Slew Rate 20V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 110 dB
Current - Input Bias 5pA
Voltage - Supply, Single/Dual (±) 140V~300V ±70V~150V
Output Current per Channel 15mA
Input Offset Voltage (Vos) 1.5mV
Gain Bandwidth Product 5MHz
Neg Supply Voltage-Nom (Vsup) -150V
Unity Gain BW-Nom 5000 kHz
Average Bias Current-Max (IIB) 0.00005μA
Low-Offset NO
Frequency Compensation YES
Low-Bias YES
Bias Current-Max (IIB) @25C 0.00005μA
Power YES
Compliance
RoHS Status RoHS Compliant
